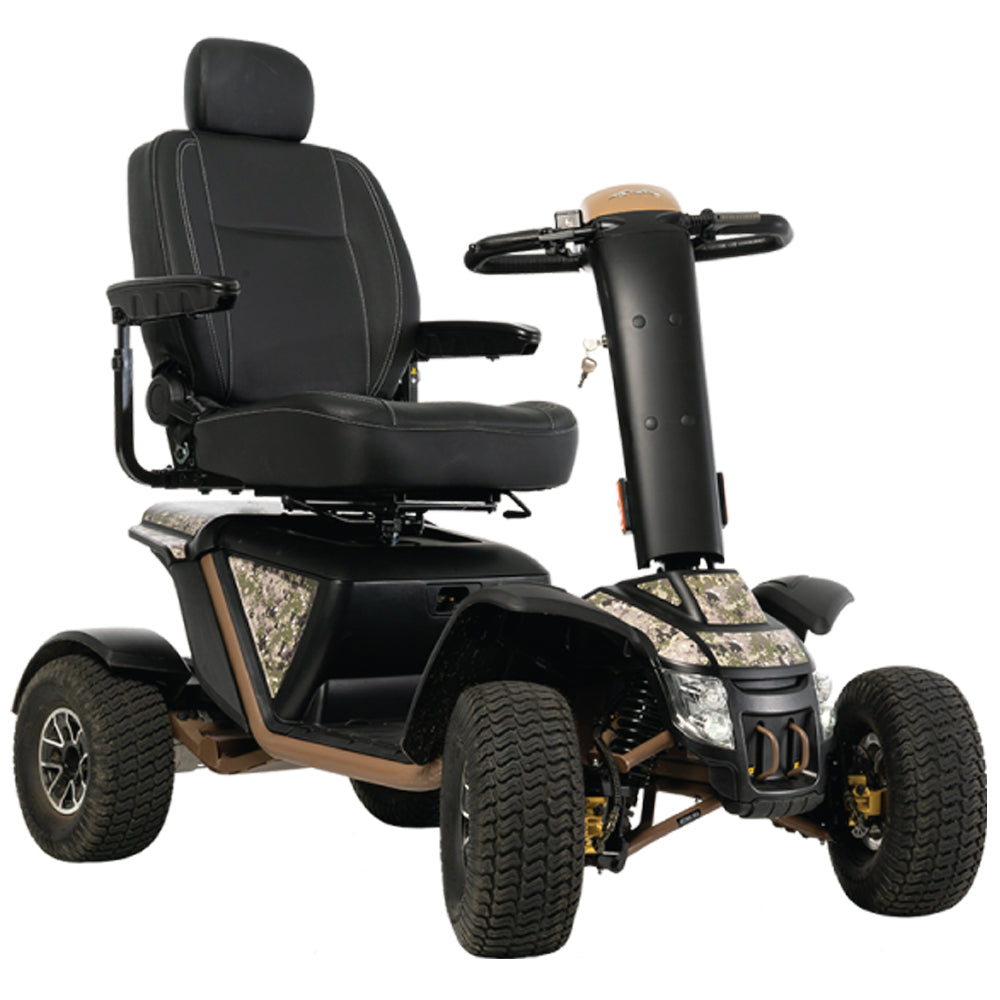

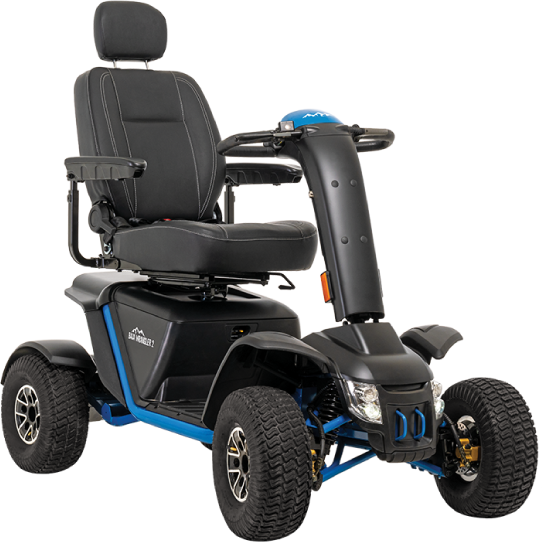

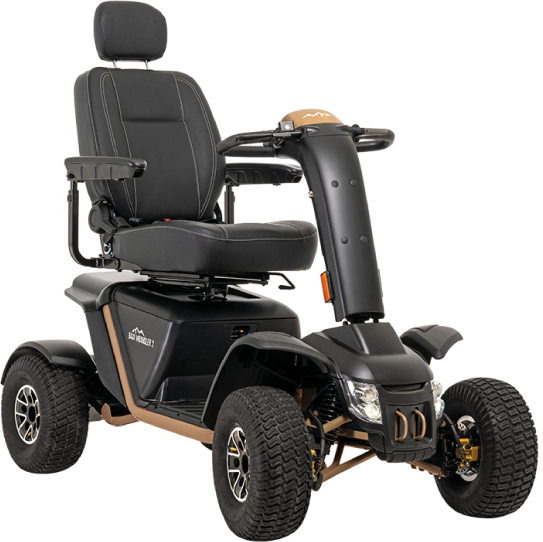

Baja Wrangler 2
Tough Path, Easy Ride

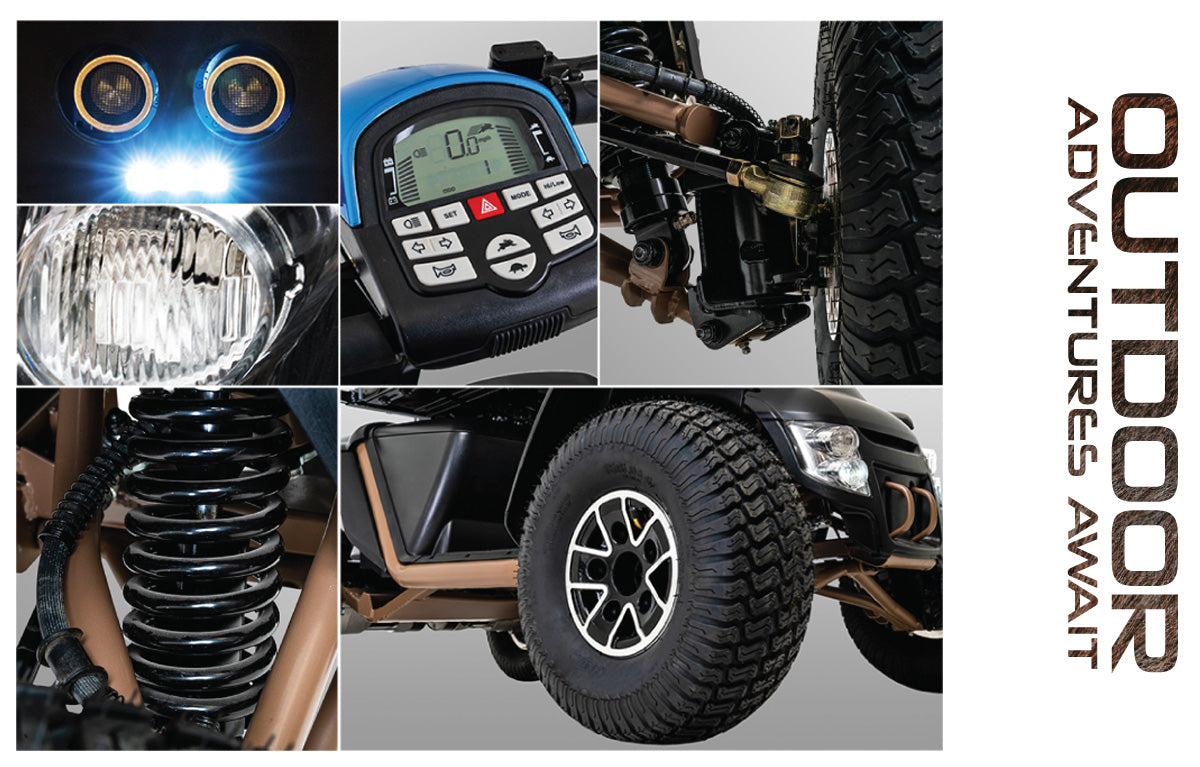

You want to have new adventures, without feeling like you've just climbed Everest. Our all-new steering dampening system absorbs uncontrolled movement over rugged terrain, limiting user fatigue and reducing the energy needed to drive in tough situations.
Forget Roads
With dual motors for an 18 km/h max speed, a 5.5" ground clearance, and combined with adjustable front and rear Comfort-Trac Suspension, the Baja Wrangler 2 enables unparalleled mobility freedom.
Track It All
A user-friendly LED console displays time, temperature, miles driven, and trips taken. All the information you need to feel confident on your next adventure!
Always Aware
An industry-first rear backup sensor means the Baja Wrangler 2’s rugged frame is safe in tight spots. A full light package includes headlights and taillights, hazard lights, and directional signals for 360° awareness.

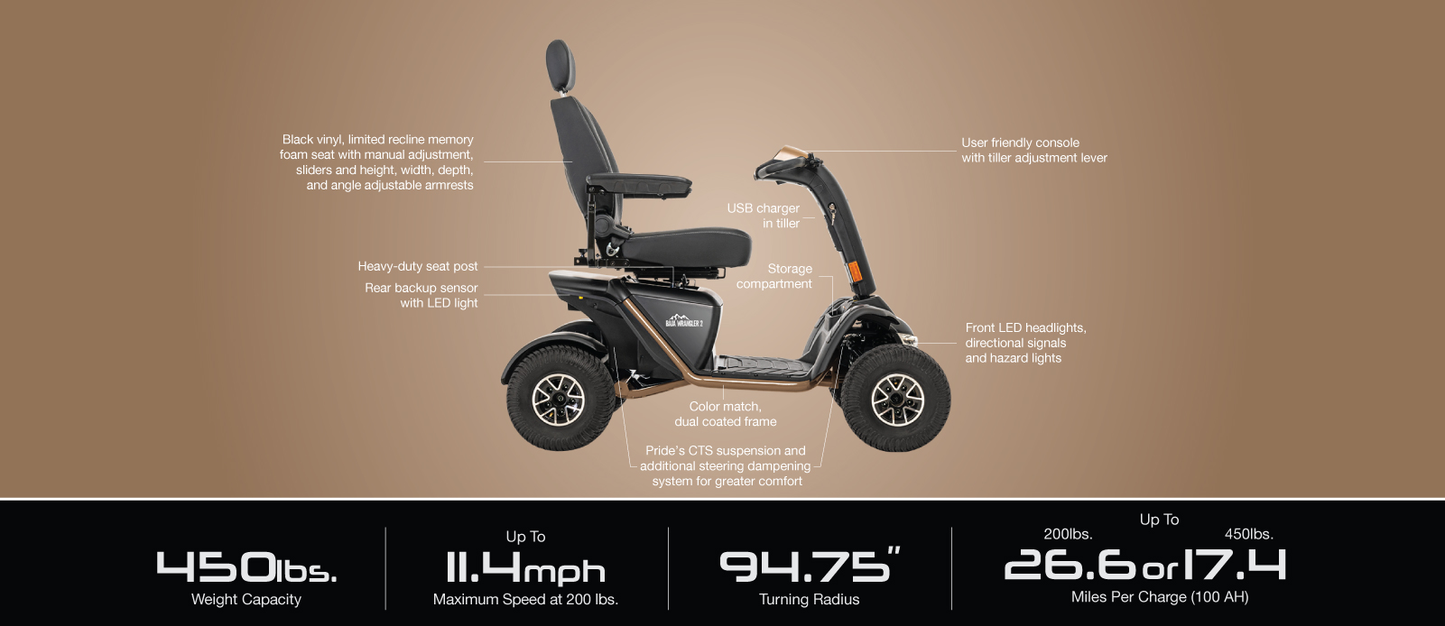

Baja Wrangler 2 Features:
450 lbs. weight capacity
Up to 18 km/h at 200 lbs.
94.75" turning radius
Up to 47 km per charge at 200 lbs.; up to 39 km per charge at 350 lbs.
Limited recline, black vinyl, high-back seat
7.7 Peak HP dual motors
CTS Suspension includes industry-leading front and rear suspension for a smoother ride
Steering dampening system absorbs uncontrolled movement over rugged terrain, limits fatigue and reduces energy needed to control handles
User friendly LED console with variable speed control displays time, temperature, miles driven, and trips taken plus horn and light buttons
Adjustable delta tiller with ergonomic, wraparound handles and XLR charging port
USB charger for charging portable devices
Easily accessible tie-down points (for transport of unoccupied scooter)
Full LED lighting package includes headlights, hazard lights, and directional signals
Rear backup sensor LED lights indicate when you are too close to an object when in reverse
Hydraulic hand brake
Easy battery installation
Storage Compartment
| CATEGORY |
SPECIFICATION |
| Range Per Charge |
Up to 18.6 miles at 350 lbs. (75AH);
Up to 22.6 miles at 200 lbs. (75AH);
Up to 24.2 miles at 350 lbs. (100 AH);
Up to 29.4 miles at 200 lbs. (100AH)
|
| Suspension |
Front and rear (CTS Suspension)
|
| Highest Ground Clearance |
8.25" ad mid-frame
|
| Lowest Ground Clearance |
5.5" at motor
|
| Turning Radius |
94.75
|
| Overall Length |
61.25"
|
| Overall Width |
32.5"
|
| Standard Seating |
Type: Pillow Top Limited Recline
Weight: 48.6 lbs.
Size: 18.5"x16.5"
Material: Black Vinyl
|
| Seat-to-Ground Height |
29"-30.5"
|
| Seat-to-Deck Height |
20.5"-22"
|
| Front Tires |
14.5" Tubeless
|
| Rear Tires |
14.5" Tubeless
|
| Battery Requirements |
Type: (2) 75AH; (2) optional 100 AH
Weight: 75AH- 48 lbs.; 100 AH- 60.5 lbs.
Battery Charger: Off-board, 8 amp
|
| Total Weight Without Batteries |
274 lbs.
|
| Heaviest Piece when Disassembled |
219 lbs. (unit does not disassemble) without seat and batteries
|
| Total Product Weight (Standard) |
370 lbs. (75 AH); 395 lbs. (100 AH)
|
| Drive System |
24-volt DC motor, rear-wheel drive, dual in-line
|
| Braking System |
Regenerative and electromechanical
|
|
| Maximum Speed |
Up to 11 mph at 350 lbs.;
Up to 11.4 mph at 200 lbs.
|
| Warranty |
Frame: lifetime limited;
Drivetrain: 2-year limited;
Electronics: 2-year limited;
Battery: 13-months
|
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. |
