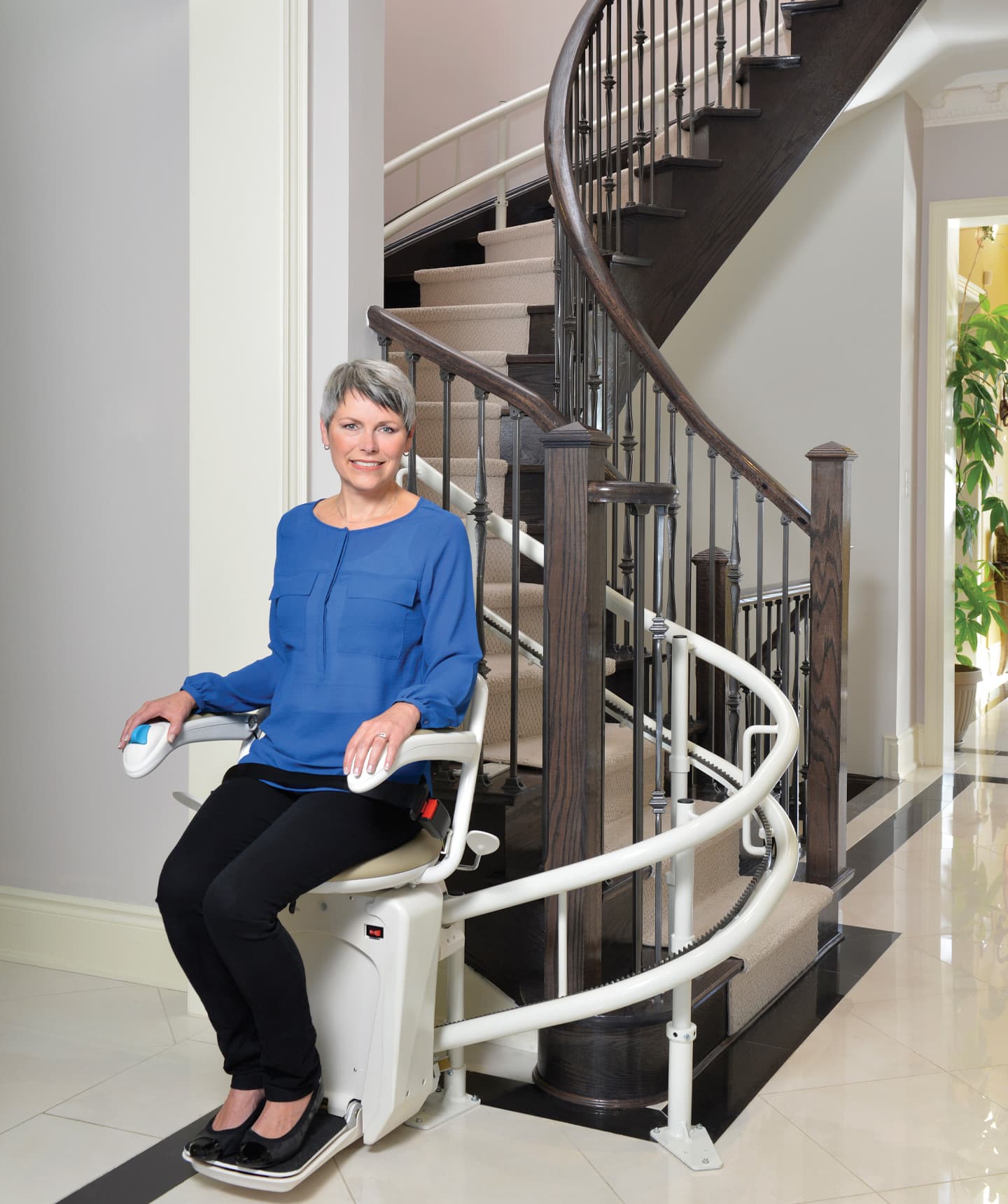

Many people dread the thought of moving just to avoid climbing stairs. After all, this is the home you’ve enjoyed for many years with family and friends. The Savaria Stairfriend 23 can give you the freedom to stay in your home and enjoy it without the worry of navigating stairs. Ride in comfort around curves, landings or changes in direction with the Stairfriend – specifically designed for your home. Installing the Savaria Stairfriend 23 usually involves only two visits to your home. The first visit includes a precision measuring session to ensure a perfect fit for your stairs and the installation is easily completed on the second visit. Move up, not out with Stairfriend, from industry leader Savaria.

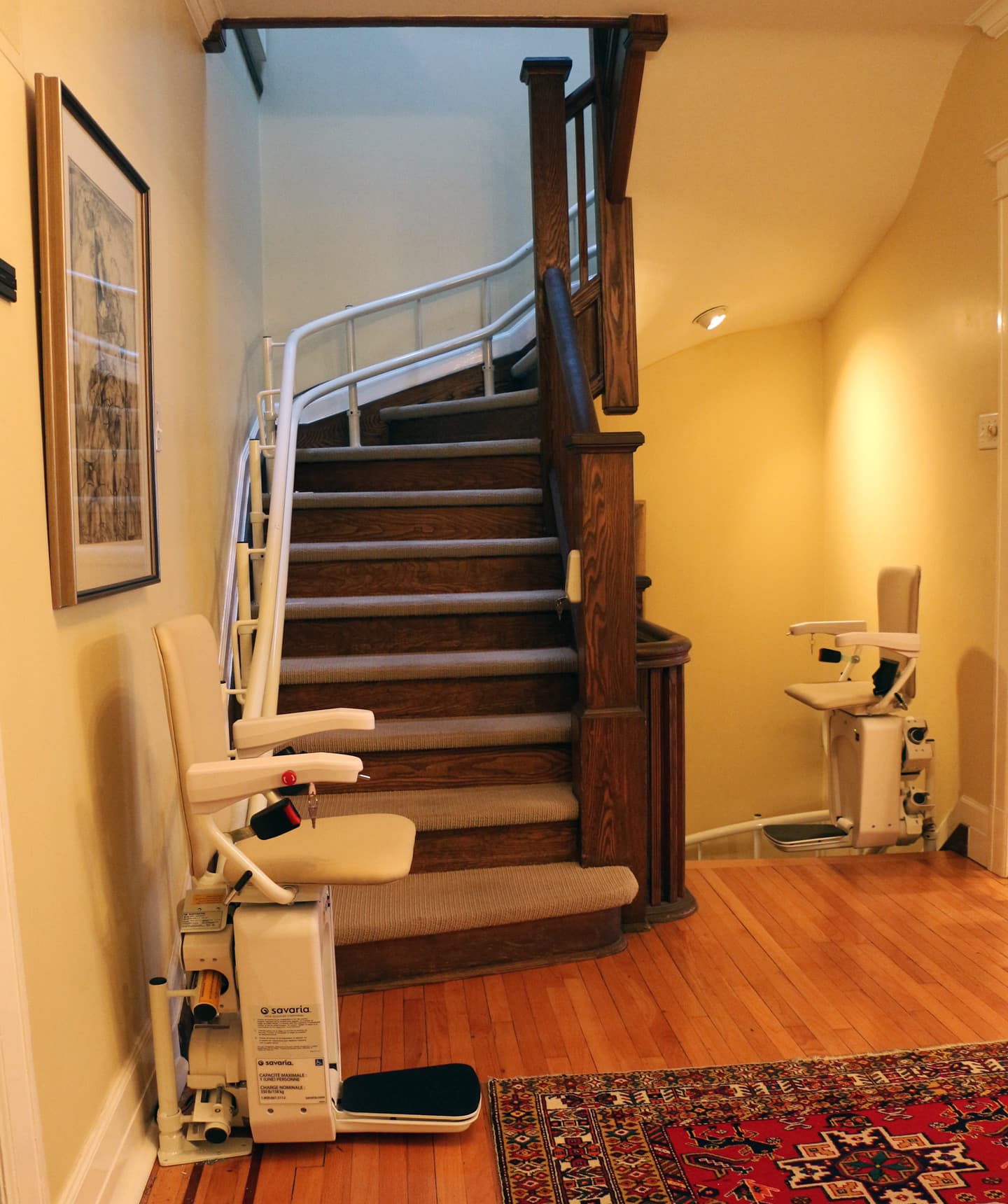

Designed for indoor access over stairs with multiple levels, curves or intermediate landings

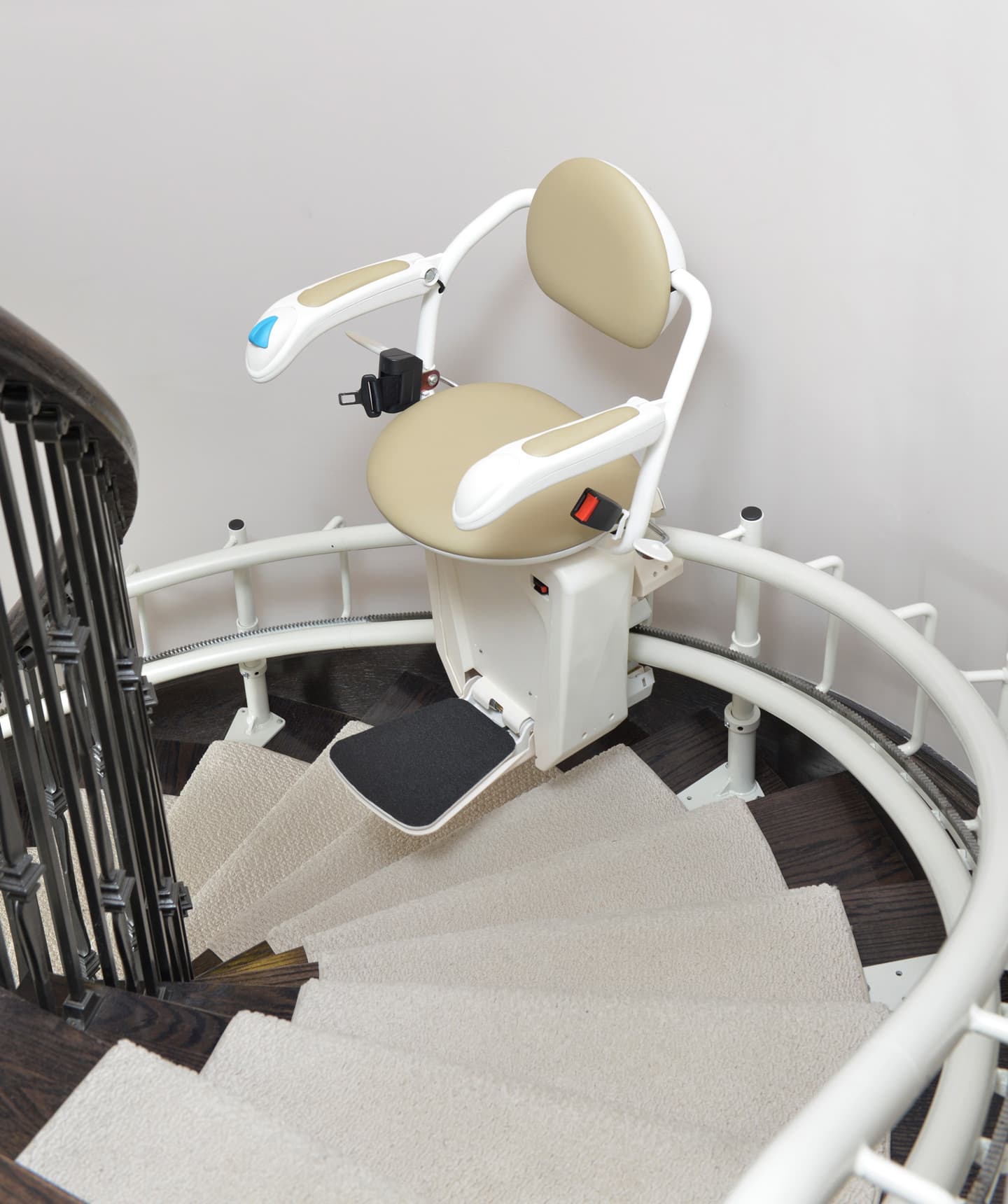

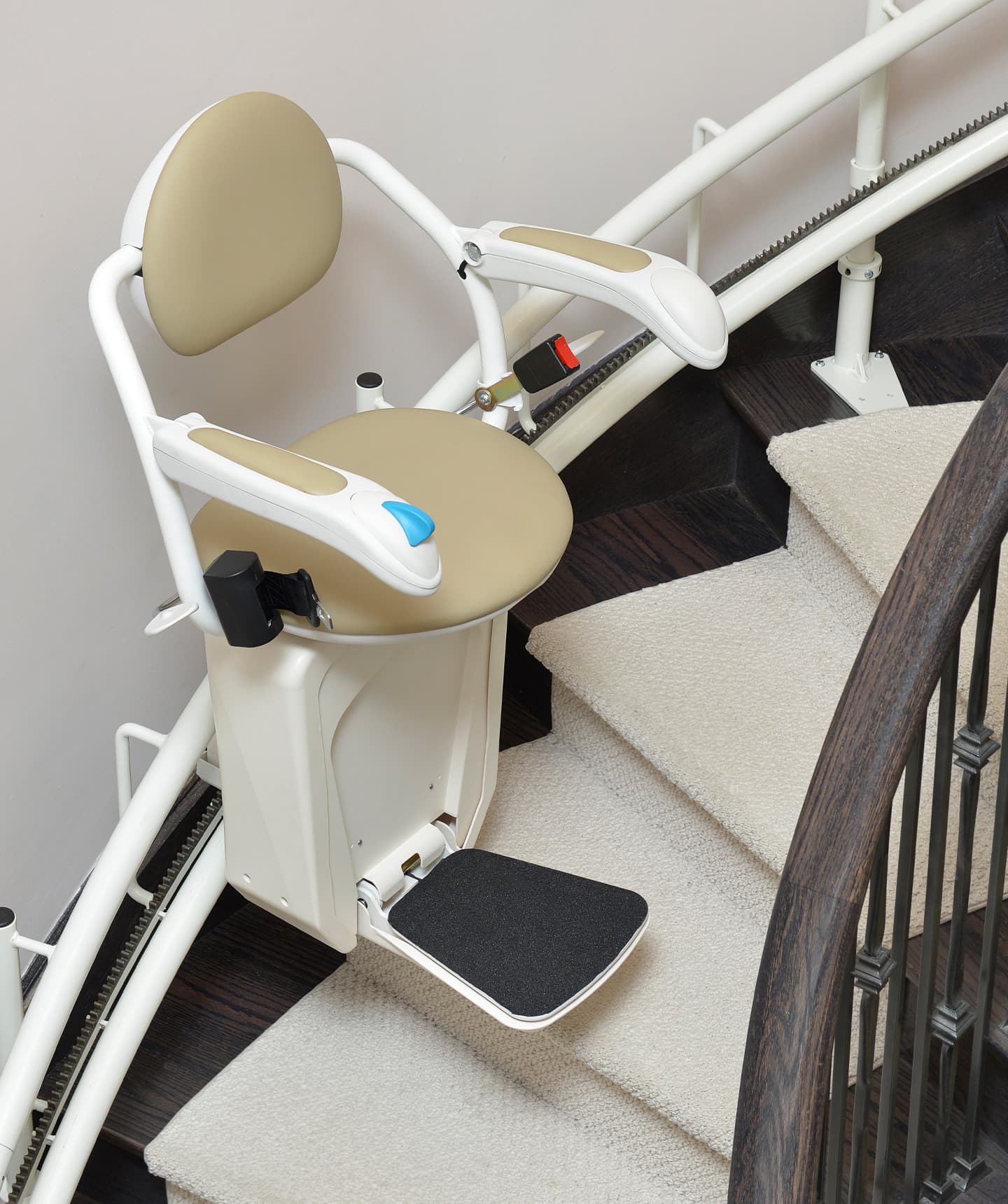

Double rail custom bent to exact specifications; out-of-the-way parking option
Quiet, smooth-riding operation with 300 lb capacity and optional 350 lb capacity

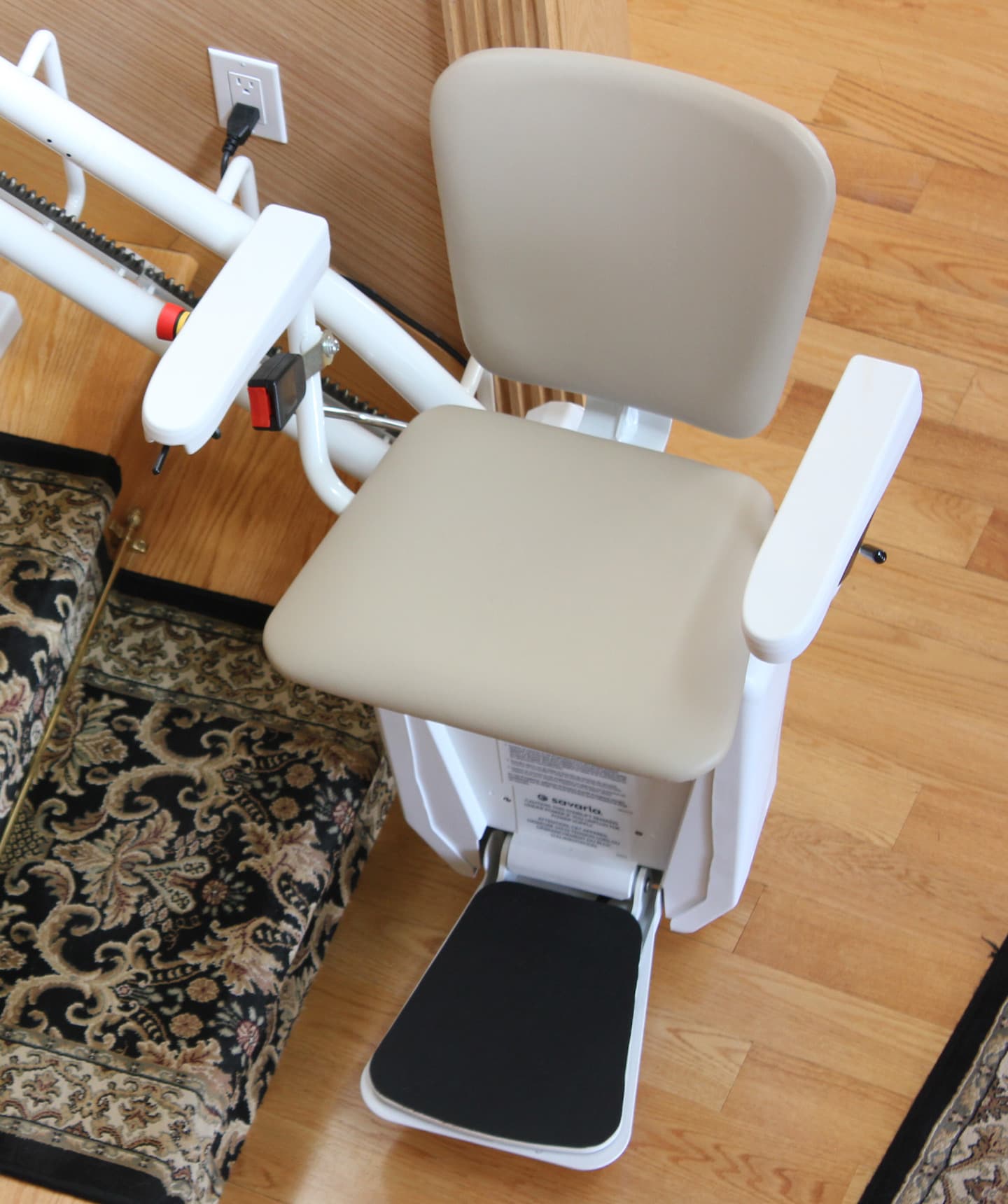

Choice of 2 seat styles to suit your comfort needs
Suitable for residential use and commercial applications in some regions*
Battery operated; allows operation during a power outage
Features
Battery powered:Operates through power interruptions with charging stations at top and bottom and optional intermediate landings. On-board controls: With soft start and smooth stop operation, seat swivels and locks into position for safe boarding and deboarding, retractable seat belt. Radio frequency remote controls:Offer greater range and control of device from other rooms. Overspeed governor and obstruction sensors:To stop the chair if it meets an object in both up or down travel directions. Reliable rack and pinion drive:With sturdy, twin steel tube rail construction. Custom-built:For curves, turns, landings and parking, and can be mounted on either side of stairs. LED status lights:To advise of any issues. Finish options:Choice of seat with wipe-clean synthetic leather. Warranty:36 months parts. Please see complete detailshere.
Options
Options:Choice of seat, 90º or 180º parking, top or bottom overrun, keyless access, emergency stop button, extra-long seatbelt and 5-point harness.
Specifications
Applications:Residential, commercial*, indoor. Standard capacity:300 lb (136 kg), optional 350 lb (160 kg) Maximum travel: 84' (25.60 m) Nominal speed:20 ft/min, (0.1 m/s), 12 ft/min (0.06 m/s) through curves. Motor: 0.6 hp, 24V (DC) Fold-up depth:16.25" (413 mm) Fold-out depth: 27" (686 mm), with offset footrest: 25.75" (660 mm), with small footrest: 25" (640 mm) Range of incline:0˚ to 56˚ *where permitted by code
