Quickie Xplore 2


X-Series Brochure




Call for pricing

This product is only available upon request. Contact us for a quote.

Share this product

X-Series Brochure

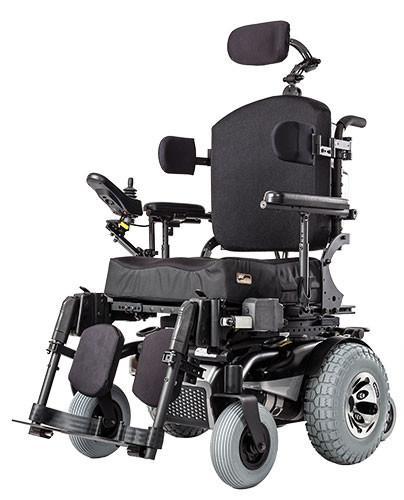

The Quickie® Xplore 2™ is the most hybrid product available. This wheelchair offers the best of both worlds; the traction of a rear wheel drive and the short turning radius of a mid-wheel drive wheelchair. The fast speed of the Xplore 2™ makes it the ideal choice for someone spending a lot of time outdoors and who wants to go the distance. Safe and comfortable, the 6-wheel independent suspension is offered in Standard, Heavy Duty and Pediatric.

Hybrid Base

Hybrid Base

No adjustments needed to achieve stability and traction.

 Top of the line comfort

Top of the line comfort

While riding over uneven surfaces, the hard movements and vibrations are controlled and not absorbed by the seat or user.

Worry free suspension

Worry free suspension

The independent suspension stabilizes the seat in downhill and uphill transitions to keep the user comfortable in their chair.

Intelli-drive™ Technology

Intelli-drive™ Technology

This steer correcting feature improves maneuverability at low speed and helps maintain a straight trajectory for non-proportional specialty controls or when in latch mode in indoor or outdoor environments.



Drive Wheel Position Rear Wheel Drive
Funding Information Adult: WPA3QU270; Pediatric: WPK3QU070
User Weight Capacity Standard: 300 lbs.; Heavy Duty: 400 lbs.
Overall Wheelchair Weight
Overall Wheelchair Width 23.375" with Narrow Frame (25.375" with STD Frame)
Turning Radius
Overall Wheelchair Length 35.875" (Without front riggings)
Suspension
Transit Approved No
Shipping Dimensions 48" x 40" x 54"
Average Shipping Weight 350 lbs. – 450 lbs.

FRAME AND FEATURE MEASUREMENTS
Seat Width Range 15" to 20"
Seat Depth Range 15" to 22"
Seat-To-Floor Height 16.5" (without power seating) - 17.25" with Power Tilt
Pre-Set Seat Frame Angle 0°, 3°, 6°, 9°
Back Height Range 12" to 22"

OPTIONS AND ACCESSORIES
Maximum Speed 8.5 MPH
Frame/Shroud Color Options Black; Pearl Blue; Razzleberry; Pearl Red; Yellow; Burnt Orange Metallic; Midnight Purple; Toxic Green; Black Opal Metallic; Orange Pearl Metallic
Drive Wheel Cast Wheel Pneumatic Tire; Cast Wheel Pneumatic with Flat-Free inserts
Caster Wheels 8" Pneumatic; 9" Pneumatic
Transit Option Transport brackets only to secure an unoccupied wheelchair during transport.
LED Light Package Yes
Wheel Locks N/A
Manual Conversion Kit N/A
Ventilator Options N/A
Batteries 22NF Gel Batteriesl; 24 Gel Batteries
Battery Charger Lester 8 amp Battery Charger
Drive Control Options VR2 90 Amp Drive Controller
R-net EL 90 Amp Expandable Controller
R-net PM 120 Amp Fully Expandable Controller
Joysticks VR2 Joystick
Monochrome Joystick
Multiple Drive Joystick
Joystick Mount Fixed
Swing-Away
Center Mount Swing Away
Joystick Handle Stick
Ball
Foam Ball
T-handle
Goalpost
R-net OMNI and Output Options R-net Output Module (ECM)
R-net Bluetooth Mouse-over
OMNI Mount Swing-Away (right or left side)
Switch Inputs for Joysticks or OMNI Buddy Button - Red
Disc
Egg - Black
Micro Light
Switch Mount Bracket Single Toggle
Specialty Driver Control Options Quickie Sip n' Puff System
ASL Head tick Chin/Lip Control Package
ASL Proportional Mini Joystick for Midline and Armrest Mount
Proportional RIM Head Control PackageArray Package (Adult)
ASL Head Array Package (Pediatric)
Switch-It Head Array Package (Adult)
Switch-It Head Array Package (Pediatric)
Switch-It MicroPilot Proportional Mini Joys
Attendant Control Attendant Hand Control (Drive Only)
Electronics Programmers VR2 Hand Held Programmer (HHP)
Seat Frame Eclipse
Powered Seating Options 11" Power Elevating Seat Module
Powered Seating Control Method Single Actuator
Dual Actuator
Backrest Frame Type
Angle Adjustable Backrest Options
Back Cane Angle
Towel Bar Depth N/A
Back Cane Height Adjustable: 12" to 22"
Backrest Type
Head Support Options Curved Headrest Pad
Lateral Thoracic Support Swing-Away 3"x 5" (right or left)
Swing-Away 4"x 6" (right or left)
Swing-Away 5"x 7" (right or left)
Thigh Support Hip & Thigh Support Hardware
Knee Adductor Supports
Chest Strap
Armrests Cantilever
Dual Post
Dual Post Flip Back Height Adjustable
Single Post
Arm Pads Desk Length Waterfall
Full Length Waterfall
Desk Length Standard
Full Length Standard
Legrests 60° Swing-Away
70° Swing-Away
80° Swing-Away
Manual ELR Swing-Away
Adult Power Elevating & Articulating Legrests
Legrest Extensions N/A
Footplates Flip up
Angle Adjustable Flip-up
Tray Tables N/A
Backpack N/A
Positioning Belts Auto Style Buckle
Mounting Accessories N/A
Miscellaneous N/A
As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
