Quickie QM-7 Series
Quickie QM-7 Series
Call For Pricing
This product is only available upon request. Contact us for a quote.
The Quickie® QM-7 Series power wheelchairs combine function and luxury for a unique driving experience. Make your day-to-day a thrill with the QM-7 Series' SpiderTrac™ 2.0 Suspension, reliable 4-pole motors, PG Drives electronics, and our most inspired portfolio of power seating options ever.

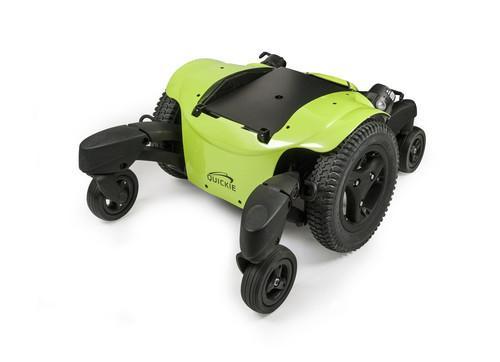

SpiderTrac™ 2.0 Suspension System
For superior traction and handling, SpiderTrac features independent movement of all six wheels. Optimized articulation of the front and rear wheels give the QM-7 Series chairs the ability to crawl up and down steep obstacles with enhanced stability and comfort. The new SpiderTrac 2.0 incorporates two additional performance springs that provide an even better intuitive response. These springs help all six wheels maintain increased contact with the ground when moving onto or off of ramps and curbs. SpiderTrac 2.0 simply must be experienced to be believed!
12" Seat Elevate and Ultra Low Seat Heights
The QM-7 combines the industry's highest Power Seat Elevate with Quickie's lowest ever seat heights, making everything at home and work within your reach. The QM-7's impressive 12" Power Seat Elevate allows you to interact with peers at eye-level and independently access tall shelves and cabinets. When ordered with tilt, recline, and elevate, the QM-7 can still achieve a seat height as low as 16", so you can pull up to tables and desks even when using a thicker cushion.
New Power Centermount Legrest with 7.5" of Articulation
Quickie's NEW Power Centermount Legrest offers an increased 7.5" range of articulation. This helps maintain comfortable positioning of the legs during elevation, and keeps the knees from bending when elevated.
With length adjustments that span from 3" to 19", the new Power Centermount Legrest provides the optimal fit for a wide range of user lower leg lengths. The left and right sides may be independently adjusted for a customized fit.
The Power Centermount has the unique capability of extending the footplate all the way to the ground, creating a stable platform for easy transfers.
NEW Electronics Options for Enhanced User Experience
PG Drives Advanced Color Joystick - Operating the various functions of a power wheelchair has never been this convenient. This joystick includes a large, 3.5" color display for easy viewing, paddle switches that control on/off functions and chair speed, a speaker for increased horn volume, and programmable shortcuts for custom control of other functions.
Retractable Joystick Mount - Adjustable from -135° to +135°, the retractable joystick mount offers a comfortable driving position for users whose hands turn inward/outward, retracts inward for clearing tight spaces, and retracts outward to improve access to desks/tables.
Ctrl+5 Toggles and Buttons - The Ctrl+5 allows for convenient access to 5 seating functions through either toggle switches or buttons, includes a USB port to charge mobile devices, and may be mounted in various locations including behind the back for use as an attendant control.
Switch-It Dual Pro™ - The Dual Pro is a truly proportional head array with fine-tuned adjustments and customization to provide the user an easy-to-learn, precise, and intuitive driving experience. Visit the Dual Pro product page to learn more!
SURETRAC™
The Suretrac self-compensating drive control reacts to the variance of resistance met by each wheel independently and sends each motors appropriate amperage to neutralize the impact of:
- - Different texture: Hard wood floor, carpet, doorstep and other
- - Slopes
- - Uneven & irregular terrain
- - Obstacle on one side only
- - In small spaces
The rider gets superior maneuverability.
This is an ideal option for riders using proportional control drive but requiring additional assistance, or for riders using specialty controls such as Switch-It.
| Model Number | EIPW11 |
| Starting Retail Price | $7,135 |
| Drive Wheel Position | Mid Wheel Drive |
| Funding Information | Adult: WP0000686 Pediatric: WP0000687 |
| User Weight Capacity | QM-710 and QM-720 Models: 300 lbs. QM-715 HD Model: 400 lbs. |
| Overall Wheelchair Weight | No Power Seating Option: 310 lbs. Single Power Seating Option (Tilt or Recline): 350 lbs. Multiple Power Seating Options (Tilt & Recline): 375 lbs. |
| Overall Wheelchair Width | 25" |
| Turning Radius | 20" |
| Overall Wheelchair Length | 36" without footrests |
| Suspension | SpiderTrac™ |
| Transit Approved | Yes |
| Shipping Dimensions | 47" L x 40" W x 54" H |
| Average Shipping Weight | 350 lbs. |
| FRAME AND FEATURE MEASUREMENTS | |
| Seat Width Range | 12" to 22" |
| Seat Depth Range | 12" to 22" |
| Seat-To-Floor Height | No Power Seating Option: 17.3" to 20.3" Single Power Seating Option (Tilt or Recline): 18.3" to 21.3" Multiple Power Seating Options (Tilt & Recline): 17.1" to 20.1" |
| Pre-Set Seat Frame Angle | 0°, 3°, 6°, 9° |
| Back Height Range | 14" to 28" |
| OPTIONS AND ACCESSORIES | |
| Maximum Speed | 5.0 mph High Torque Package 6.0 mph Standard Package 8.0 mph Community Package |
| Frame/Shroud Color Options | Candy Apple Red High Gloss Black Candy Blue Silver Copper Green Apple Yellow Pearl Pink Candy Purple Matte Black Midnight Blue Pearl White Digital Camo Woodland Camo Carbon Fiber Print |
| Drive Wheel | 14" Cast Wheel Solid Inserts (knobby) 14" Cast Wheel Pneumatics (knobby) |
| Caster Wheels | Front and Rear: 6" Solid - Black or Grey option |
| Transit Option | 4-point Transit Package |
| LED Light Package | N/A |
| Wheel Locks | Wheel Locks |
| Manual Conversion Kit | N/A |
| Ventilator Options | Fixed Vent Tray (Pulmonetic LTV Models) |
| Batteries | 22NF Flat Top with Straps Group 24 Flat Top Gel Cell with Straps Group 34 Flat Top Gel Cell with straps |
| Battery Charger | 8A Dual Mode (Compact) CTE |
| Drive Control Options | Non-expandable VR2 controller (90 Amp) Non-expandable R-net PM120 Controller (120 Amp) Expandable R-net Controller (90 Amp) Expandable R-net PM120 Controller (120 Amp) |
| Joysticks | VR2 Joystick R-net Standard LED Joystick R-net Joystick with Stereo Jacks and Monochrome Display R-net Joystick with Toggle, Speed Potentiometer, Stereo Jacks and Color Display |
| Joystick Mount | Fixed Swing-Away |
| Joystick Handle | Ball Foam Ball T-handle Goalpost |
| R-net OMNI and Output Options | R-net Input Control Module and Display with Built-in Infrared and Armrest Mount R-net Output Module (ECM) R-net Bluetooth Mouse-over |
| OMNI Mount | Swing-Away (right or left side) |
| Switch Inputs for Joysticks or OMNI | Stereo to 2 Mono Splitter Ribbon Buddy Button Disc Wobble Micro Light Egg - Black Dual Toggle Switch Only 4-way Toggle Switch with 5th Button DB9 Connector |
| Switch Mount Bracket | Single Dual Toggle 4-way Toggle |
| Specialty Driver Control Options | Quickie Sip n' Puff System ASL Head Array Package (Adult) ASL Head Array Package (Pediatric) Switch-It Head Array Package (Adult) Switch-It Head Array Package (Pediatric) ASL Proportional Mini Joystick Chin/Lip Control Package ASL Proportional Mini Joystick Midline with Gatlin Package Quickie Proportional Chin Control Package |
| Attendant Control | For VR2 (Mounted right or left) For R-net (Mounted right or left) |
| Electronics Programmers | VR2 Hand Held Programmer (HHP) R-net PC Programmer with Dongle DTT VR2 and R-net Cables |
| Seat Frame | ASAP II Recline Seat |
| Powered Seating Options | Quickie SPOT 50° CG Tilt 3.7 Power Recline with Power Shear Reduction 9" Power Seat Elevate 12" Power Seat Elevate |
| Powered Seating Control Method | Switch Control 1 Actuator with Dual Toggle and Mount Switch Control 1 Actuator with Buddy Button and Mount Switch Control 2-3 Actuators with 4-way Toggle Switch and Mount Thru Drive 1 Actuator Thru Drive 1 Actuactor with Assignable Buttons Thru Drive 2+ Actuators Thru Drive 2+ Actuators with Assignable Buttons |
| Backrest Frame Type | Angle Adjustable (ASAP II) Manual Recline 40° Power Recline |
| Angle Adjustable Backrest Options | Non-folding Folding |
| Back Cane Angle | Straight 8° Bend |
| Towel Bar Depth | Shallow Deep (extends 4" from back canes) |
| Back Cane Height | ASAP II: Fixed Low (15.5") Fixed Medium (17.5") Fixed Tall (19.5") 3.7 Power Recline: 24" to 28" |
| Backrest Type | Upholstery Tension Adjustable Upholstery Ballistic Nylon Tension Adjustable Upholstery 3DX Vented SPOT Curved JAY SPO Posterior Positioning ART SPO Posterior Positioning Integrated JAY J3 (full line available) |
| Head Support Options | Headrest Mounts: Whitmyer Axys Whitmyer Linx Whitmyer Cobra Xtra Headrest Pads: 8" Plush 10" Plush 14" Plush |
| Lateral Thoracic Support | Swing-Away 4" x 4" Swing-Away 4" x 5" Swing-Away 4" x 6" Swing-Away 6" x 4" Swing-Away 6" x 5" Swing-Away 6" x 6" |
| Thigh Support | SPOT Long Thigh Support with Removable Mount (right or left) |
| Knee Adductor Supports | Swing-Away Short or Long Arm Mounts (right or left) Small or Large Pad Sizes |
| Chest Strap | Padded Chest Strap |
| Armrests | Dual Post Flip Back Dual Post Flip Back Height Adjustable Cantilever Cantilever with Locking Post Single Post Height Adjustable Reclining Cantilever Reclining Cantilever with Locking Post |
| Arm Pads | Desk Length Waterfall Full Length Waterfall Desk Length Standard Full Length Standard Standard Reclining Arm Pad Otto Bock Reclining Arm Pad Otto Bock Hand Pad |
| Legrests | 65° Swing-Away 70° Swing-Away 75° Swing-Away 90° Swing-Away Manual ELR Swing-Away Power Centermount ELR with Articulation Swing-Away Power ELR with Articulation Fixed Centermount |
| Legrest Extensions | Short Medium Long High Mount |
| Footplates | Composite with Heel Loop Adult Angle Adjustable with Heel Loop Kids Angle Adjustable with Leg strap Aluminum One-piece Angle Adjustable Centermount Single Centermount Dual Centermount High Mount |
| Tray Tables | Small Tuffak 13-14 Medium Tuffak 15-17 Large Tuffak 18-20 |
| Backpack | Black Utility Black/Charcoal Kids |
| Positioning Belts | Auto Style Buckle 2" Aircraft Buckle 2" Aircraft Padded Buckle |
| Mounting Accessories | N/A |
| Miscellaneous | N/A |
