Q6 Edge

Q6 Edge

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out

Call For Pricing

This product is only available upon request. Contact us for a quote.

Q6 Edge Brochure

With features like standard 4-pole motors, Mid-Wheel 6® drive design and ATX Suspension, the Q6 Edge® Power Chair is engineered to meet the performance needs of the most active user. The Q6 Edge® Power Wheelchair accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value.

Available in 10 Brilliant Colours:

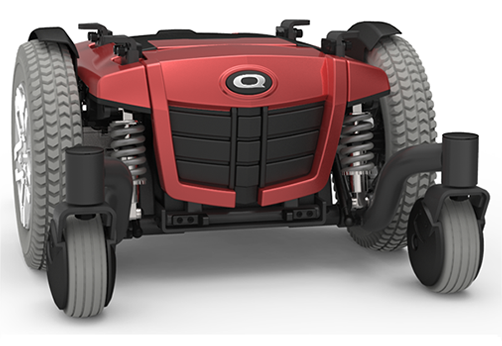

  • Candy Apple Red

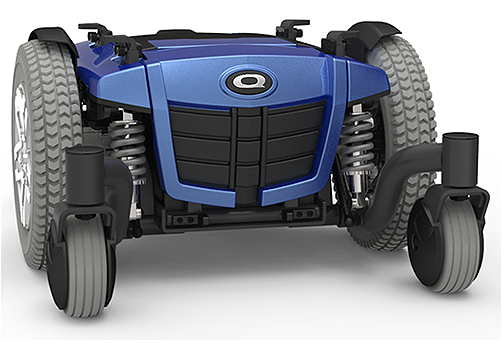

  • Viper Blue
  • Onyx Black

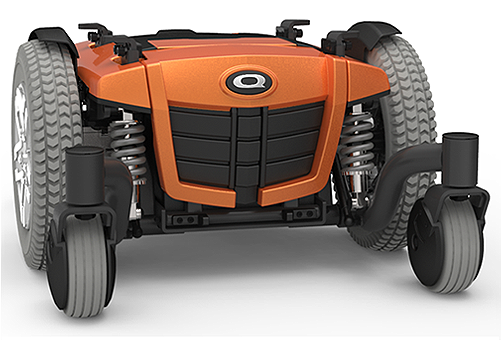

  • Sunburst Orange
  • True Blue
  • Emerald Green
  • Silver
  • Sapphire Blue
  • Pearl Pink

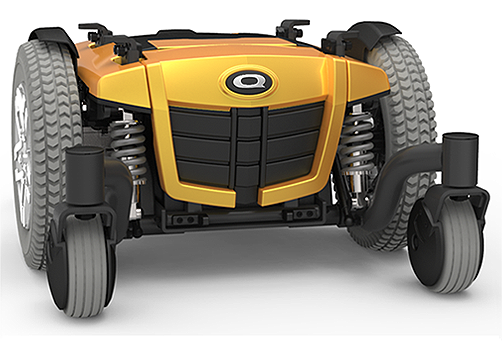

  • Orion Yellow

Features


  • Mid-Wheel 6® allows six wheels on the ground for maximum stability
  • Compatible with TRU-Balance® 3 Power Positioning Systems
  • Available with Q-Logic 2 Drive Control System, which offers Bluetooth® access to computer, tablet and phone functions
  • Low impact OMNI-Casters (nylon, spherical-shaped casters) on front and rear prevent wheel hang-ups
  • ATX Suspension (Active-Trac® with extra stability) incorporates front OMNI-Casters and semi-independent rear caster beam for enhanced performance over more varied terrain
  • Exceptional performance and value
  • Standard 4-pole motors
  • Low seat-to-floor heights
  • Full rehab capability
  • Comprehensive warranty
  • High-speed motor package and LED full lighting package offered

Specifications


Model Q6 Edge
Drive Wheels 14" Solid
Optional: 14" Pneumatic
Caster Wheels Front: 6" Solid
Rear: 6" Solid
Anti-Tip Wheels N/A
Maximum Speed4 Up to 5 mph (Optional: 6 mph)
Ground Clearance 3" (frame center)
Turning Radius5 20"
Overall Length 35.5" without foot riggings
Base Width 24"
Seating Sizes TRU-Balance® 2
Synergy®/Static: W: 10-22" D: 10-22"
Power Tilt: W: 14-22" D: 14-22"
Lift & Tilt: N/A
TRU-Balance® 3
Synergy®/Static: W: 12-22" D: 12-22"
Power Tilt: W: 12-22" D: 12-22"
Lift & Tilt: W: 12-22" D: 12-22"
Seat-to-Floor Heights TRU-Balance® 2
Synergy®/Static8: 15.9"-17.9"
Power Tilt8: 17.3-19.3"
Lift & Tilt8: N/A
TRU-Balance® 3
Synergy®/Static8: 16.5-18.5"
Power Tilt8: 17.5-19.5"
Lift & Tilt8: 18-20"
Manual Tilt/Recline10 Yes
Battery Size6 NF-22
Battery Weight14 38 lbs.
Available Electronics12 75A Q-Logic 2 NE
75A Q-Logic 2 NE+
100A Q-Logic 2 EX
Battery Charger 8A Off-board
Motor Packages 4-Pole 5 mph 1 or 4-Pole 6 mph 2
Weight Capacity7 300 lbs.
Base Weight 138 lbs.
Medicare Code Coverage Group 3:
Standard (K0848/K0849)
Single Power (K0856/K0857)
Multiple Power (K0861)
Notes:
1 Standard
2 Optional
3 Requires HD Suspension
4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
5 Without front riggings
6 Battery capacity may change when adding power positioning systems.
7 Weight capacity is dictated by the selection of seating.
8 All measurement +/- 1/8" with 18" x 18" seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8" with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Limited measurements are in the lowest position; does not include elevating system unless specified.
9 250 lbs. weight capacity with TRU-Balance® Systems
10 The Synergy® Manual Tilt weight capacity is 75 lbs. and maximum dimensions are 14"W x 14"D. Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
11 Requires Group 34 batteries
12 All Quantum Rehab® units can be ordered with specialty controls
13 Required with high-speed motors
14 Battery weight may vary +/- 3 lbs. based on manufacturer.
15 Weight capacity is reduced to 400 lbs. with the 10" Lift.



The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
