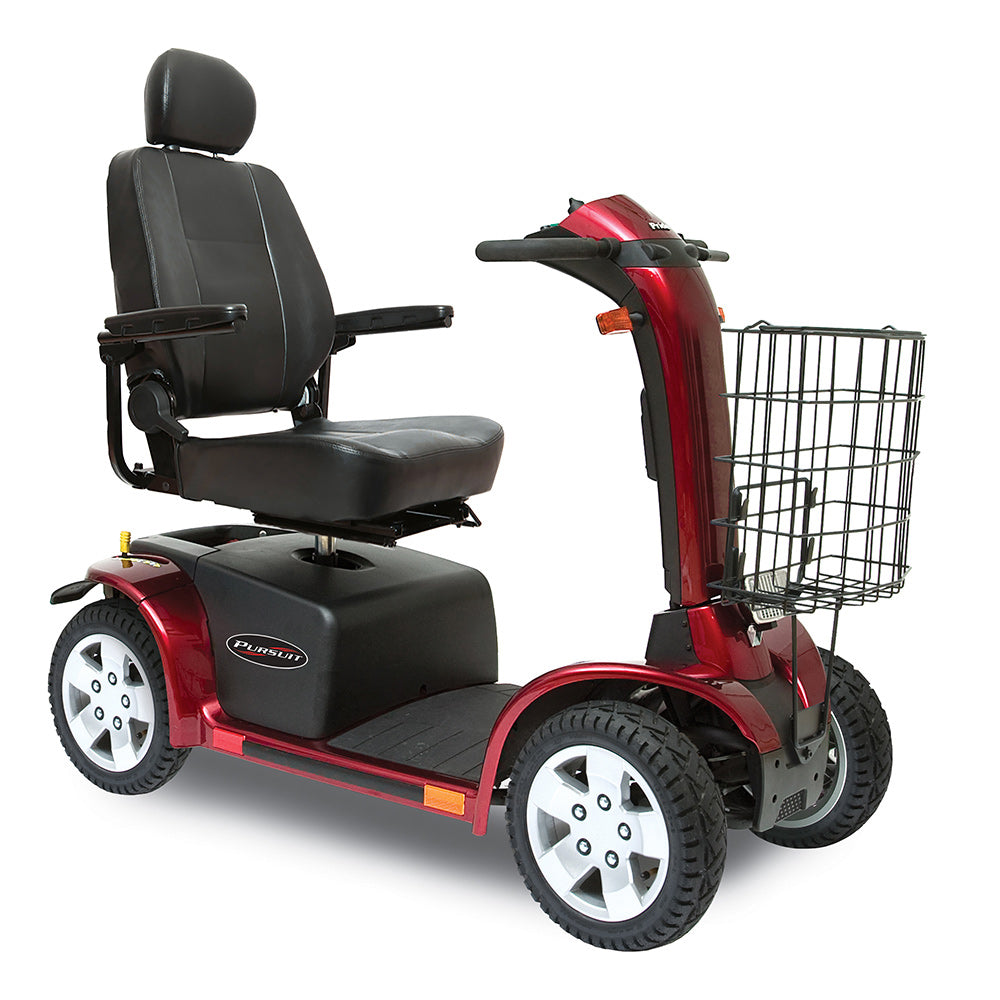

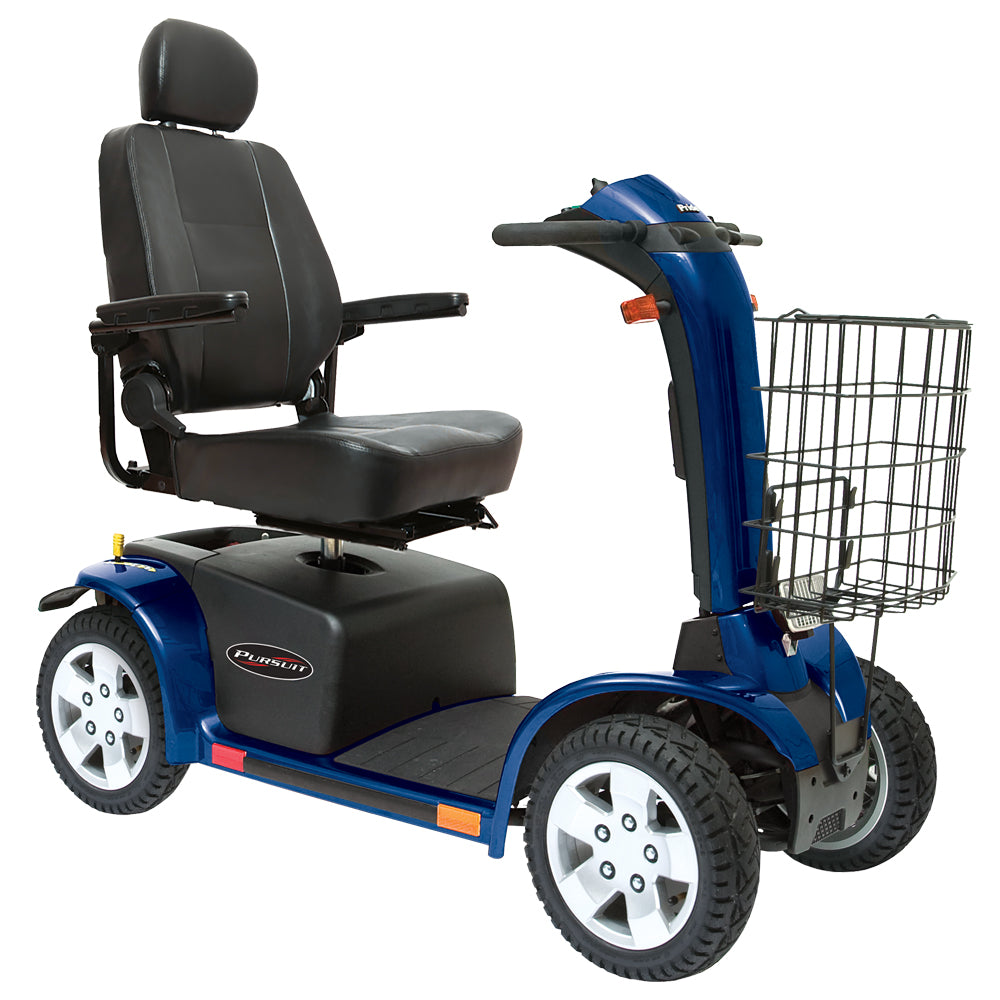

The Pursuit® offers a rugged design that is extremely versatile. Enjoy an adjustable delta tiller with wraparound handles for easy, one-handed operation. Equipped with front and rear suspension and large 13” drive tires, the Pursuit navigates outdoor terrain with ease. Cruise at speeds up to 9.5 mph (with HS version) and experience a full lighting package, including turn signals and an angle-adjustable LED headlight, for optimal illumination.
Easy-to-read LED battery meter

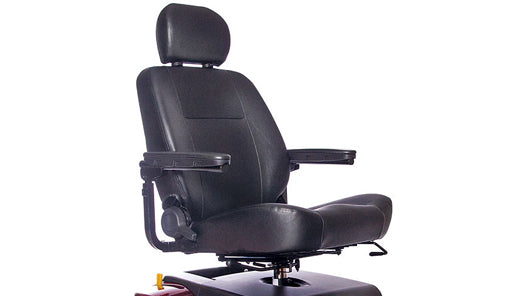

Reclining high-back seat with sliders, swivel, height adjustable headrest, flip-up, height and width adjustable armrests
Delta tiller with wraparound handles
Easily accessible tie-down points (for transport of unoccupied scooter)
Easy-access tiller-mounted charger port

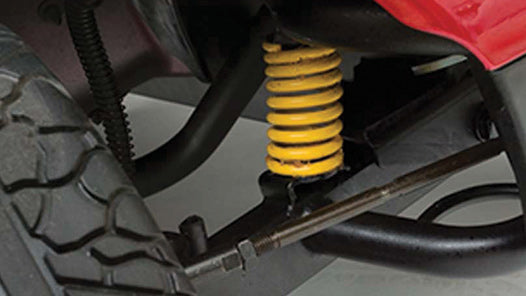

Front and rear suspension

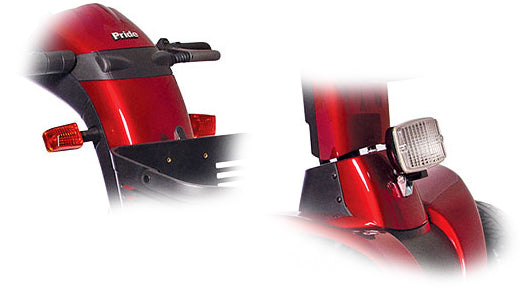

Full lighting package includes directional signals and large lower headlight for pathway illumination
Infinitely-adjustable tiller with conveniently located handle

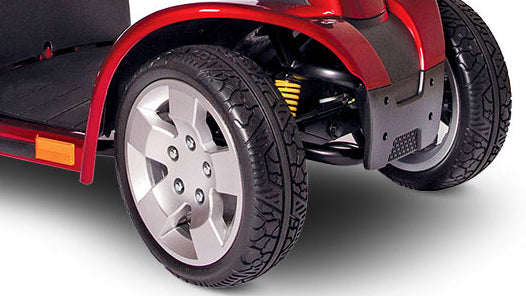

Large 13” pneumatic tires
Powerful drivetrain; features 140 amp microprocessor-based controller
24-volt, 4-pole DC motor for increased power
Jumbo front basket (standard)
Model
Pursuit
Model Number
S713ES CA/S713ES HS
Front Tires
13” pneumatic (standard)
Rear Tires
13” pneumatic (standard)
Maximum Speed*
Up to 6 mph HS:Up to 9.5 mph
Ground Clearance
3.5"
Turning Radius**
68.5"
Overall Length**
53.5"
Overall Width of Base**
25"
Seat-to-Ground Height Range
24.75"-26.25"
Seat Type
Reclining High Back (18"x18")
Weight**
161 lbs.
Seat-to-Deck Height Range
17.75"-18.75"
Battery Weight
53 lbs. each (Group 24 or 75AH)
Battery Requirements
(2) Group 24
Maximum Range Per Charge*
Up to 33 miles HS:Up to 22 miles
Battery Charger
Off-board, 8 amp
Suspension
Front & Rear
Maximum Weight Capacity
350 lbs.
Standard Body Colors
Red, Blue
Warranty
Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain
