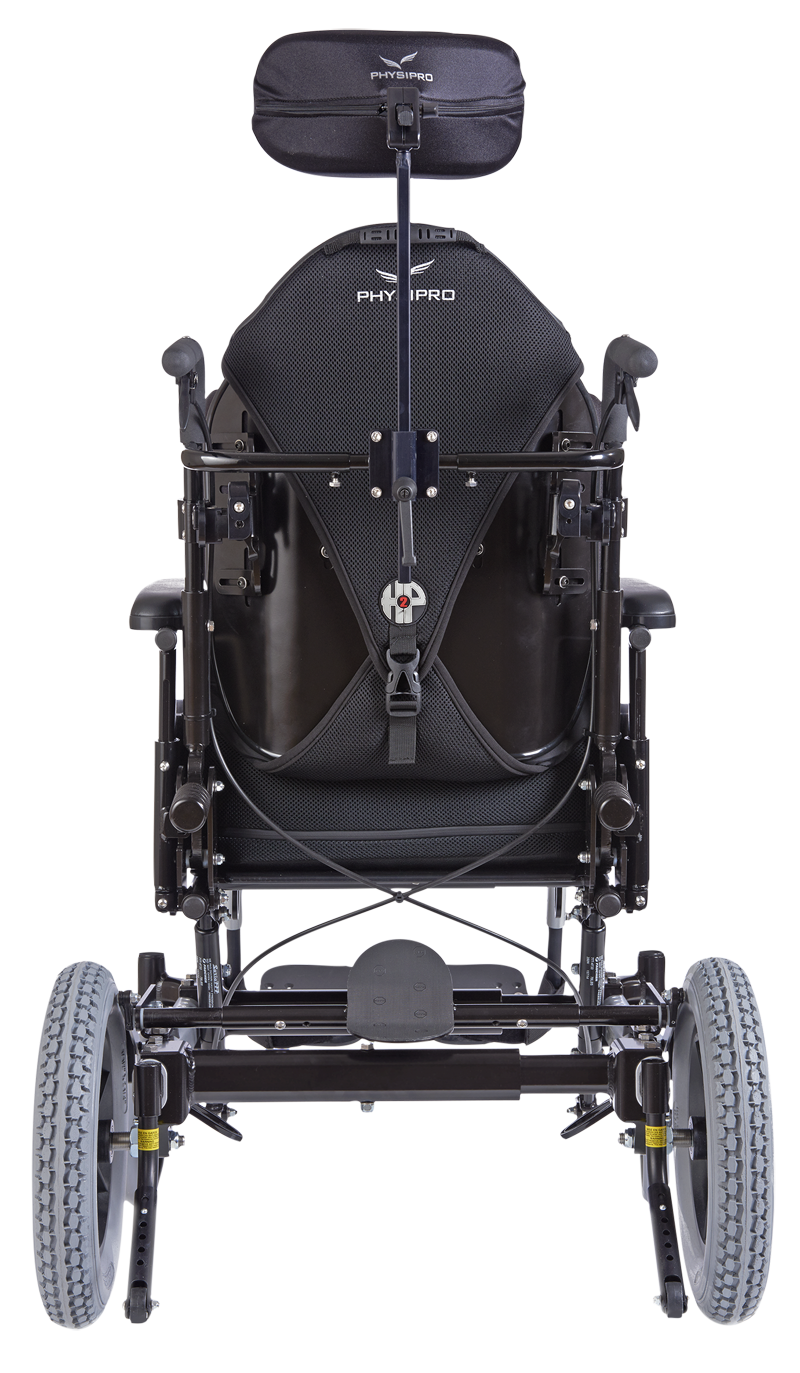

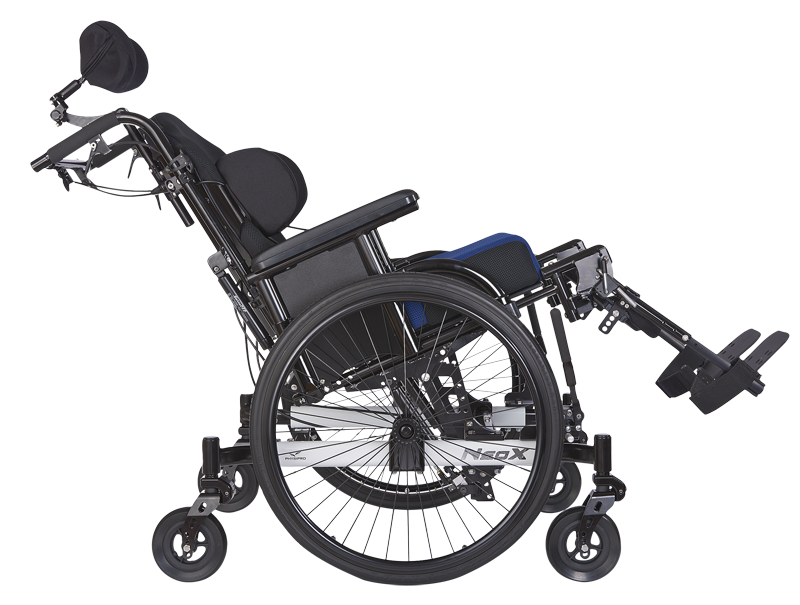

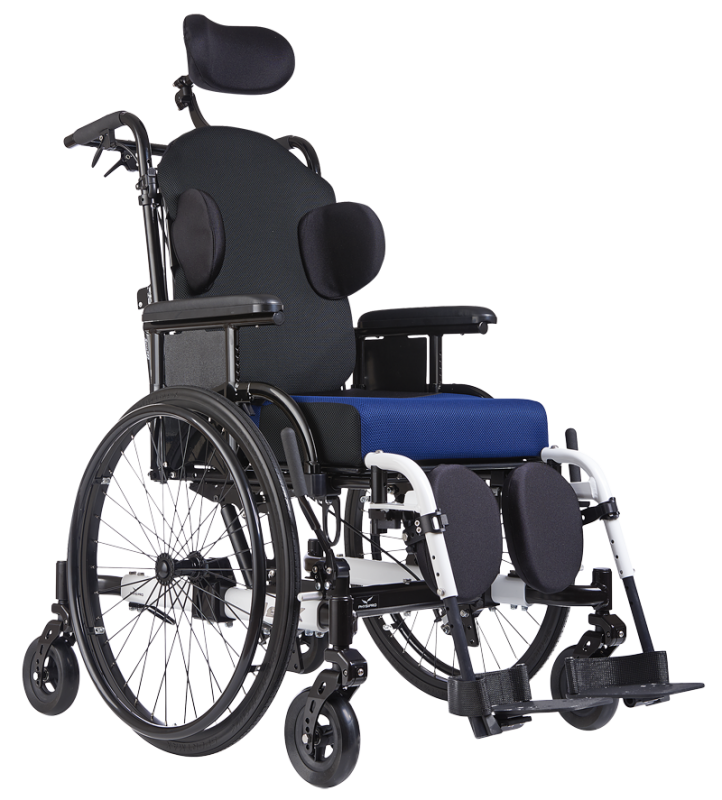

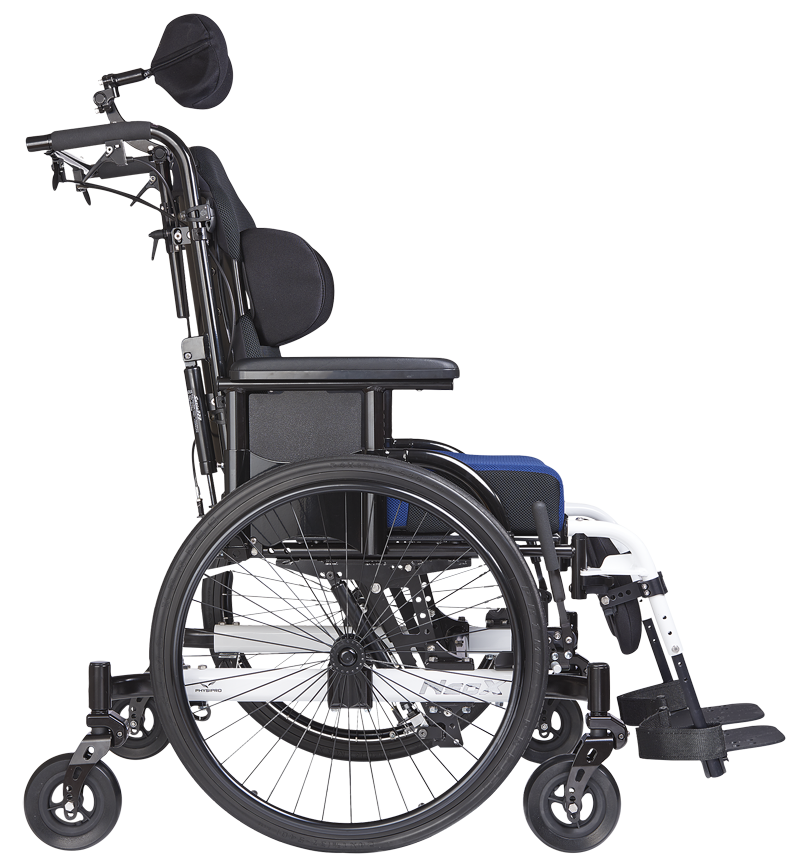

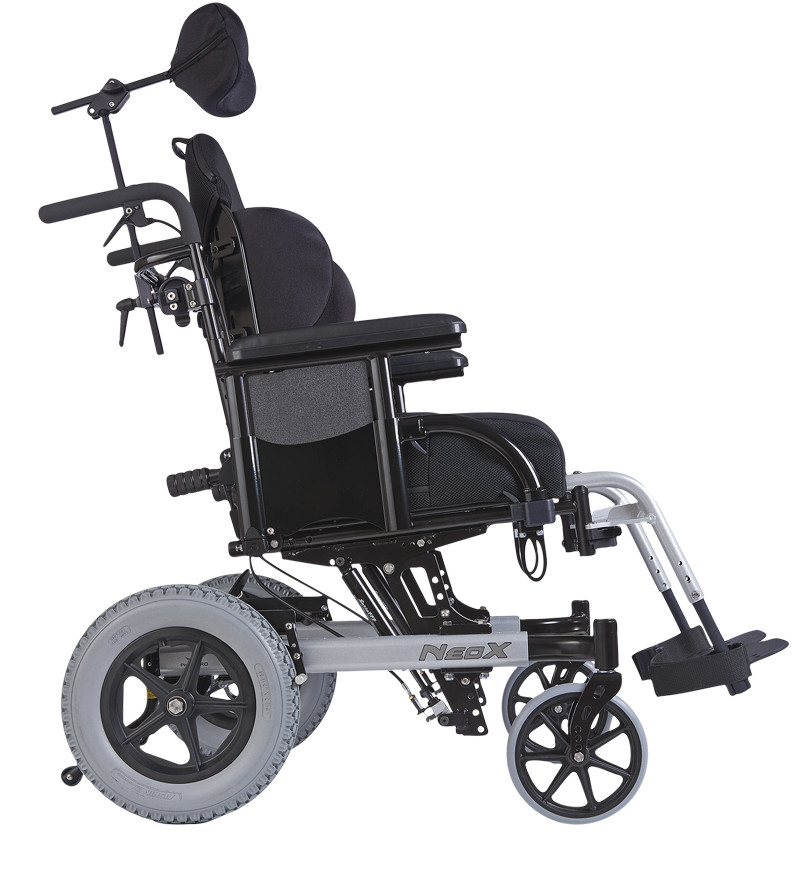

The NEOX™ incorporates advanced geometric design and revamped technology, resulting in a modern Tilt-in-Space wheelchair that combines strength, versatility, and maneuverability. A practically limitless range of adjustment options translates into a perfect fit and weight distribution.
ATTENDANT WHEEL LOCK
Features an attendant operated wheel locks for easy use.
The addition of recessed rear wheels reduces the turning radius and makes the NEOX™ easier to propel when in a tilted position.
The tilt rear wheel technology greatly facilitates daily use indoors or outdoors.
The elongated, telescopic shapes in the NEOX™frame are precision designed. The sliding tubing allows for fast, accurate positioning.
PROTECTION FROM UNCONTROLLED MOVEMENT
An optional dynamic backrest offers protection from uncontrolled movement and helps reduce wheelchair damage. The dynamic backrest reduces pain caused by muscle spasms and facilitates their control. It promotes postural trunk control by allowing muscle stretching without restrictions.
|Seat depth||14″ to 22″|
|Seat width||Small frame 14″ to 19″
Extended frame 19″ to 22″
HD frame 20″ to 26″
|Front seat-to-floor height
||13″ to 20″|
|Front wheel diameter||5″, 6″, 8″|
|Rear wheel diameter||12″, 16″, 20″, 22″, 24″|
|Transport weight||Neox 4 wheels 50.8 lb
Neox 6 wheels 55.8 lb
|Weight limit||Standard 250 lb
Heavy Duty 350 lb
Maximum tilt limited at 22°
|Overall width||+8″ min / + 6″ for 20″seat width and over|
|Back height||12″ to 25″|
|Angle adjustable back||85° to 115°, (5° increments)|
|Tilt||(-) 5° to 45°|
« U »Type 8 ¼″ to 12 ¾″
« U »Type lowered 6″ to 9″
|Footrest||60° – 70° – 90° (foldable & adjustable in height by 5″ )|
*Weight based on 16″ x 16″ wheelchair with all standard components except for rear wheels. Rear wheels are excluded since there are multiple different weights for possible wheel configurations. Example, a pair of standard 22″ rear wheels weighs 7.8 lb.
