M300-HD

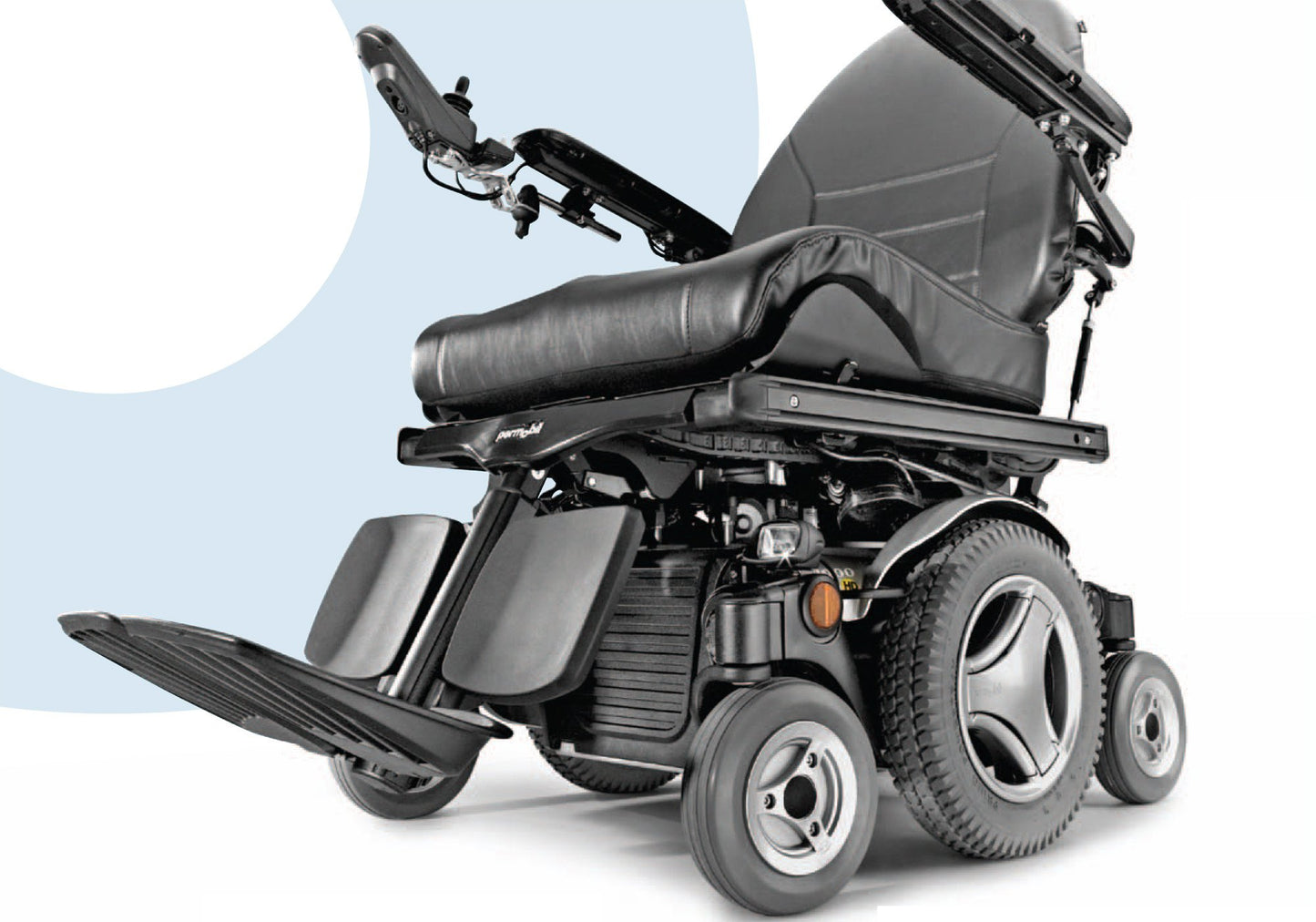

Introducing the new M300 Corpus® HD, a heavy duty power wheelchair designed specifically for users up to 450lbs. The M300 base is highly maneuverable and has been both extended and widened for the HD model, while the suspension has been strengthened for an overall more stable platform. The HD also has extremely sturdy arm and legrests as well as wider footplates to create additional room and comfort.
The M300 HD features the world-renowned Corpus seating system for the ultimate in comfort with an unmatched power tilt range of 0 — 45° and an unprecedented recline of 85 — 150°. The ultra-strong actuators allow users to safely elevate their feet above their hearts, while the durable mesh-style upholstery helps keep moisture away from the body. With the legendary power and toughness of Permobil, the M300 Corpus HD is built to withstand the rigors of any heavy duty lifestyle.

PRODUCT FEATURES

ADJUSTABLE
LEGRESTS
FULL-POWER
FUNCTIONS
STRONG
ACTUATORS
INDEPENDENT
SUSPENSION
M300 CORPUS HD SPECIFICATIONS
Maximum User Weight 450 lbs 205 kg
Maximum Speed Options 5 MPH 8 km/h
Driving Range (1) 17.8 miles 28.6 km
Base Width 26" 660 mm
Base Length 38" 965 mm
Minimum Turning Radius 22" 555 mm
Ground Clearance 3" 75 mm
Optional Seat Elevator 8" 200 mm
Battery Type
Group 24, Group 34
Drive Electronics
120A R-net
Maximum Slope (2)
7.5° Up / 7.5° Down
1 ACTUAL DRIVING RANGE WILL VARY BASED ON DRIVING AND BATTERY CONDITIONS.
2 REFER TO OWNER MANUAL FOR SAFE DRIVING PRACTICES
Seat to Floor Height
(ELEVATOR)
17.5" 445 mm
(SEAT TUBE)
18", 19", 20" 460, 485, 510 mm
Tilt Options
(POWER)
0° — 45°
(MANUAL)
No Manual Option
Recline Options
(POWER)
85° — 150°
(MANUAL)
85° — 120°
Legrest Elevation
(POWER)
85° — 175°
(MANUAL)
85° — 175°
Armrest Pad Lengths 13", 16", 18" 335, 410, 460 mm
Seat Widths 19", 21", 23", 25" 470, 520, 570, 620 mm
Seat Depths 19" — 25" 470 — 620 mm
Backrest Heights 20" 560 mm
AVAILABLE POWER FUNCTIONS

AVAILABLE FABRIC OPTIONS
COMPATIBLE SEATING SYSTEMS
CORPUS HD
The next step in the evolution of the Corpus® design strengthens the design increasing the weight capacity to 450lbs while maintaining power functions, quality and comfort.

Call for pricing

This product is only available upon request. Contact us for a quote.
