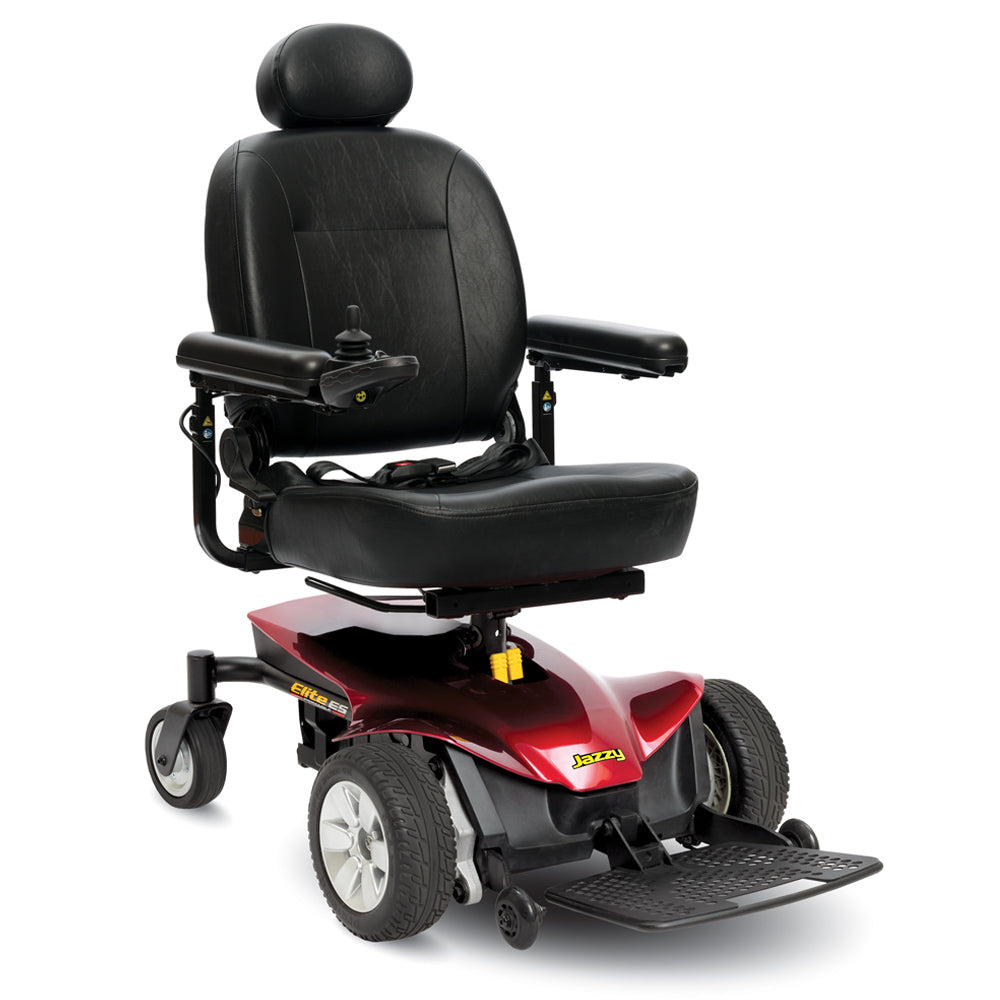

Jazzy® Elite ES Portable
Enjoy style, comfort and portability with the Jazzy® ES-Portable. This portable power chair disassembles into five convenient pieces for your life on the go.
- Easy disassembly allows for worry-free transport and storage
- Large front wheels absorb obstacles
- Equipped with front anti-tip wheels
- Easily transitions over various terrain types smoothly
- In-line, front wheel drive delivers a tight turning radius around corners

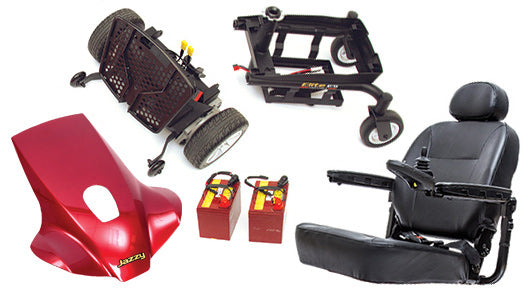

Easy Disassembly
Easily disassembles for convenient transport

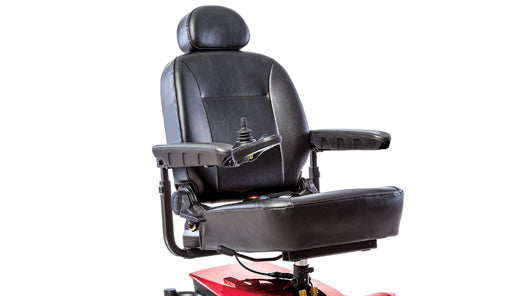

Comfort Seat
Depth adjustable, black vinyl high-back seat with removable, replaceable back and seat covers

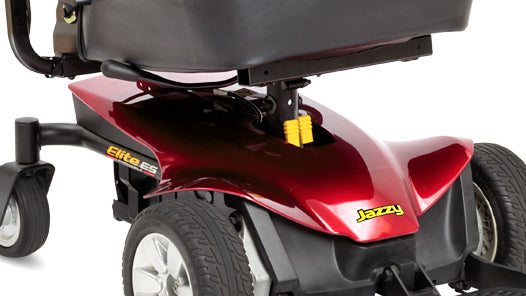

In-Line Motors
Front-wheel drive technology for handling and performance

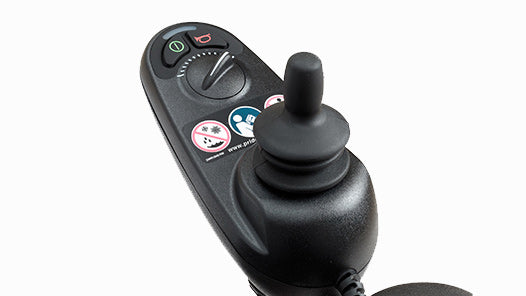

Performance-Matched Electronics
40 amp, PG GC 3 controller with intuitive hand control
| Model |
Jazzy Elite ES Portable
|
| Weight Capacity |
300 lbs. |
| Turning Radius1
|
25.5" |
| Width1
|
22.75" |
| Length1,2
|
34.75" |
| Maximum Speed3
|
Up to 4 mph |
| Ground Clearance1
|
1.5" |
| Front Wheels |
3" solid anti-tips |
| Drive Wheels |
9" solid |
| Rear Wheels |
6" solid casters |
| Drivetrain |
Two-motor, in-line, front-wheel drive |
| Braking System |
Regenerative and electro-mechanical |
| Suspension Type |
Limited |
| High-Back Seat (max. size) |
20"W x 20"D |
| High-Back Seat-to-Floor Range |
21.5" - 23.5" |
| Standard Electronics |
40A, PG GC3 |
| Battery Size (2 required) |
12 volt, U-1 |
| Standard Battery Charger |
3.5A, off-board |
| Per-Charge Range3,6
|
Up to 11 miles |
| Battery Weight5
|
25 lbs. each |
| Weight of Heaviest Piece4
|
48 lbs. |
| Standard Seat Weight |
43 lbs. (comfort, high-back) |
| Standard Seat Size |
18"x18"-20" |
| Medicare Code Coverage |
Group 2: Standard, Portable (K0820/K0821) |
| Warranty |
5-year limited warranty on frame;
2-Year limited warranty on electronics;
2-Year limited warranty on drive motors;
1-Year limited on batteries |
