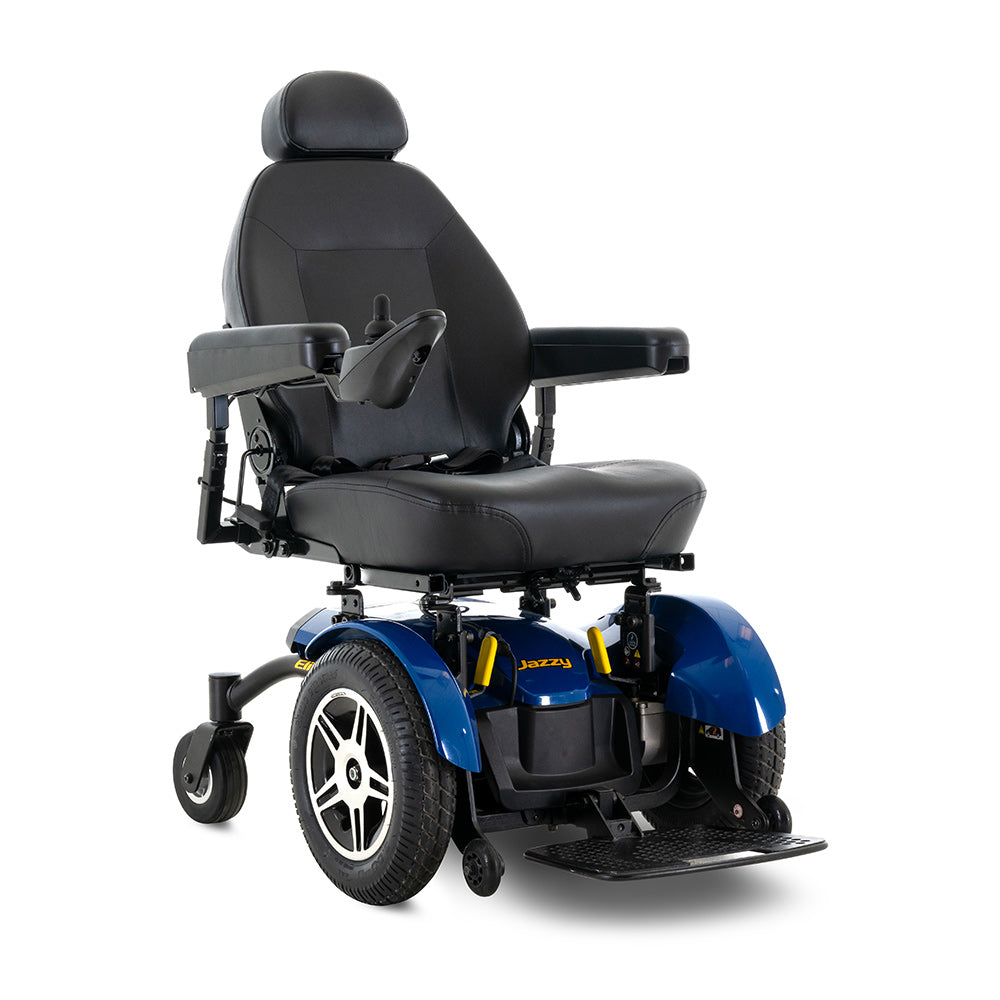

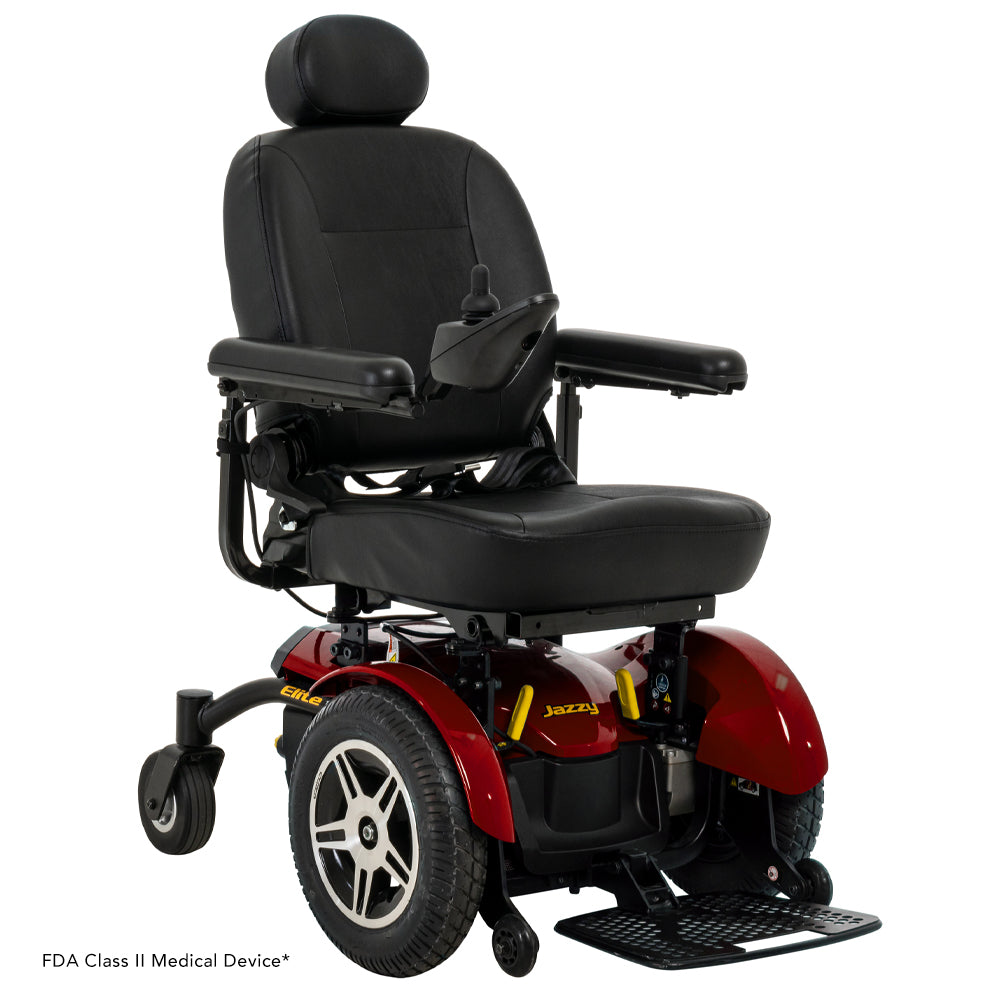

Jazzy® Elite 14
The Jazzy® Elite 14 is designed for excellent indoor maneuverability and outstanding outdoor capability.
The Jazzy Elite 14 features 14” drive wheels with a front-wheel drive design to provide tight turns around corners.
Large front wheels with anti-tips offer extra stability over obstacles for superior climbing capabilities, enabling you to handle various terrains with ease.
- 300 lbs. weight capacity
- 14" knobby tires and optimum weight distribution provide superior traction
- Red or blue color shrouds
- 50 amp controller

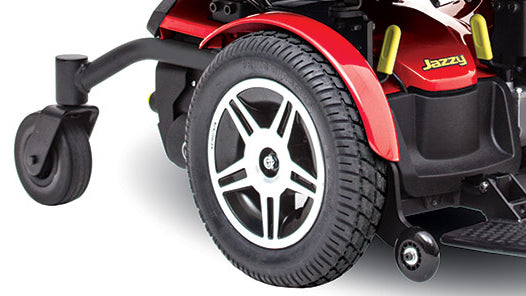

14" Tires
Deliver optimum weight distribution provide superior traction

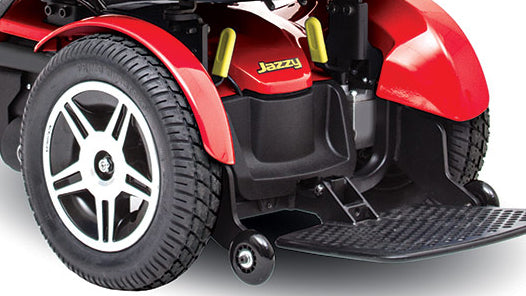

Color-Through Shroud
Scuffs and scratches are less visible

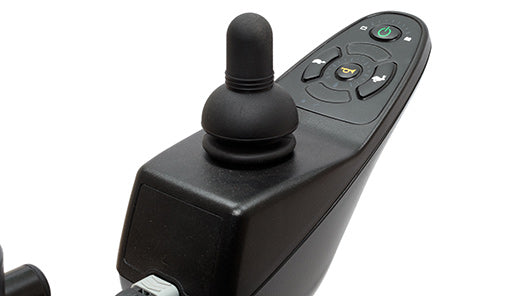

Performance-Matched Electronics
50 amp controller and intuitive hand control

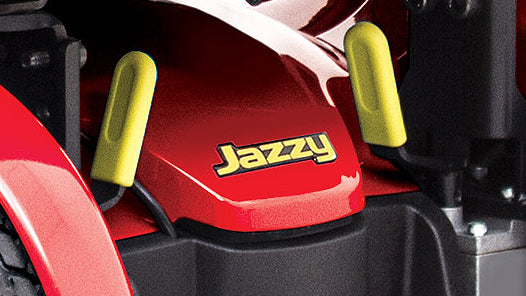

Easy-Access Freewheel
Freewheel levers are easily accessed for caregiver assistance
| Model |
Jazzy Elite 14
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Width1 | 24.25" |
| Length1,2 | 35.5" |
| Maximum Speed3 | Up to 4 mph |
| Ground Clearance1 | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Synergy® Seating | 20"W x 20"D |
| Synergy® Seat-to-Floor Range | 15.75" - 17.75" |
| Standard Electronics | 50A, Dynamic Shark |
| Battery Size (2 required) | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range3,6 | Up to 9.8 miles |
| Battery Weight5 | 37 lbs. each |
| Weight of Heaviest Piece4 | 99 lbs |
| Standard Seat Weight | 52 lbs. (high-back) |
| Standard Seat Size | 20"x18-20" |
| Warranty | 5-year limited warranty on frame; 2-Year limited warranty on electronics; 2-Year limited warranty on drive motors; 1-Year limited on batteries |
