With carbon fiber technology, the Jazzy® Carbon Power Wheelchair becomes your greatest travel companion.
You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.
Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.
Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.
Weighing in at a stunning 43.6 pounds, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.
When does a folding power chair also put comfort first?
Jazzy Carbon folds down in just a few quick motions, which makes it easier to transport in cars, planes and trains. But don’t let portability fool you. Jazzy Carbon has tall, terrain-dominating wheels and a front-end suspension system, plus a comfy seat cushion to sustain you through everything your busy day throws at you.
Maybe you’re taking a weekend trip to visit the grandkids, and they’ve got your Saturday booked with stops at all their favorite places.
Or maybe you and your pals are taking a once-in-a-lifetime trip to an all-inclusive resort, and you don’t want to miss a single moment of it.
Jazzy Carbon gives you mobility and control to do it all.

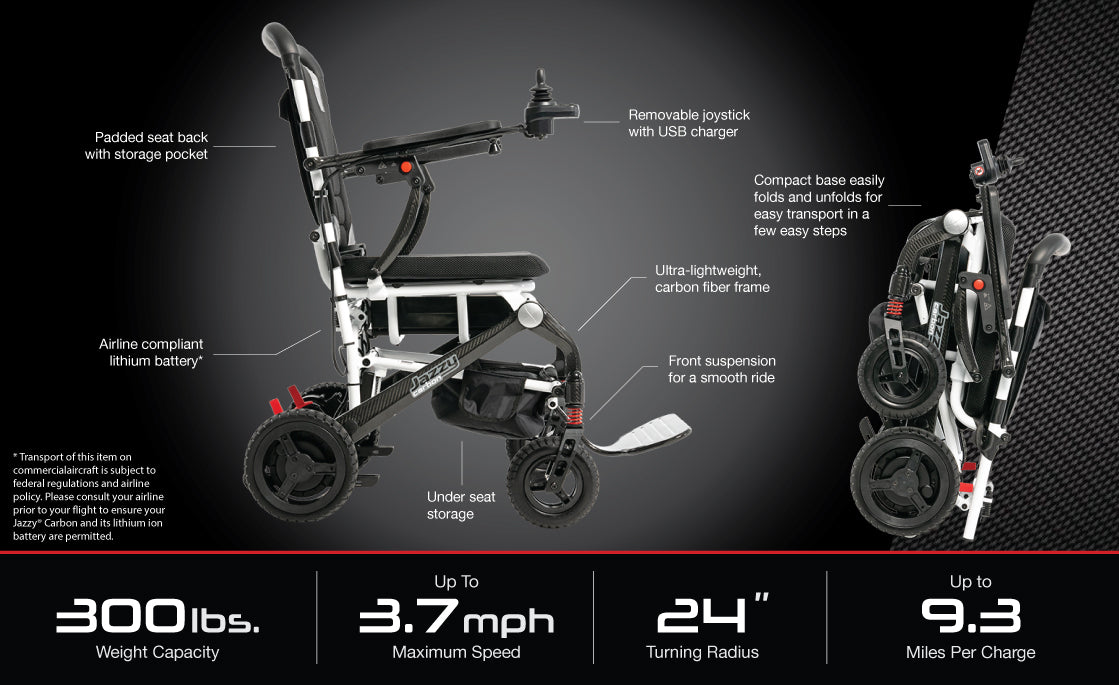

Jazzy® Carbon Features:
- 300 lb. weight capacity
- Removable joystick for transporting with built in USB charger
- Airline compliant lithium battery**
- Front suspension for a smooth ride
- Ultra-lightweight, carbon fiber frame specifically designed for traveling

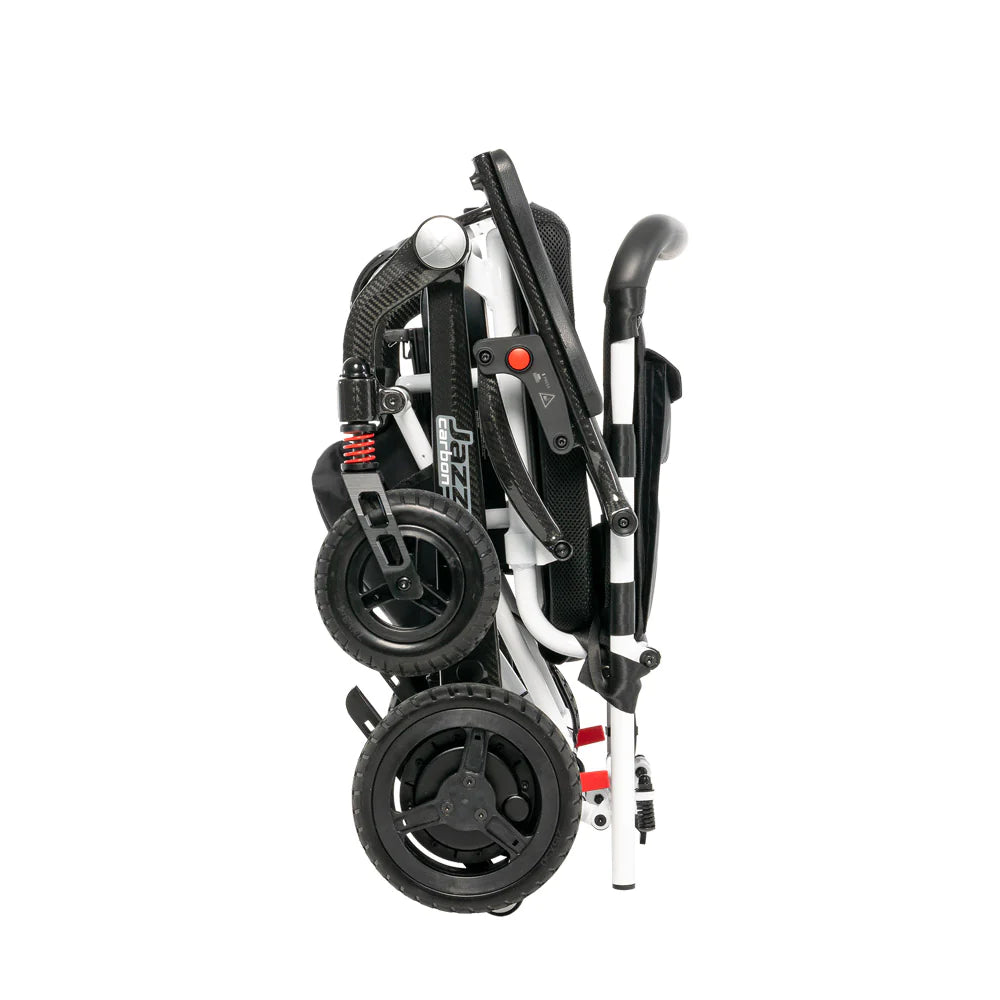

- Compact base easily folds and unfolds for easy transport in a few easy steps
- Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
- Free-wheel levers to easily disengage the brake allowing this lightweight power chair to be pushed like a manual chair
- Included under-seat storage and adjustable lap belt
- When folded 28.3"x12.2"x24"
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
**Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted.
|Weight Capacity||300 lbs.|
|Maximum Speed1||Up to 6.0 km/h|
|Seat-to-Foot Platform Height||14.5" (no adjustment)|
|Seat-to-Floor Range with Standard Cushion||20.75"|
|Seat-to-Floor Range without Cushion||18.75"|
|Power Elevating Seat||NA|
|Battery Sizes||24V 12 Ah (288WH)|
|Total Weight Without Batteries3,5||39 lbs.|
|Total Weight With Batteries3,5||43.6 lbs.|
|Heaviest Piece When Disassembled3||N/A|
|Standard Seating||Material: Black, Foam
Dimensions: 17" x 17"
|Maximum Seat Size||17" x 17"|
|Per Charge Range||Up to 15 km|
|Drivetrain||24v/250W Brushless motors|
|Standard Electronics||35A Brushless Micon|
|Braking System||Regenerative and electromechanical|
|Battery Weight4||4 lbs.|
|Battery Charger||Off-board, 2-amp lithium-ion|
|Weight of Heaviest Piece||NA unit folds and doesn't disassemble|
|Warranty||Frame: Lifetime limited;
Drivetrain: 1-year limited;
Electronics: 1year limited;
Batteries: 1-year limited
1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%.
2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%.
4 Battery weight may vary based on battery manufacturer.
5 Includes standard seat weight.
|All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.|
Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted.
