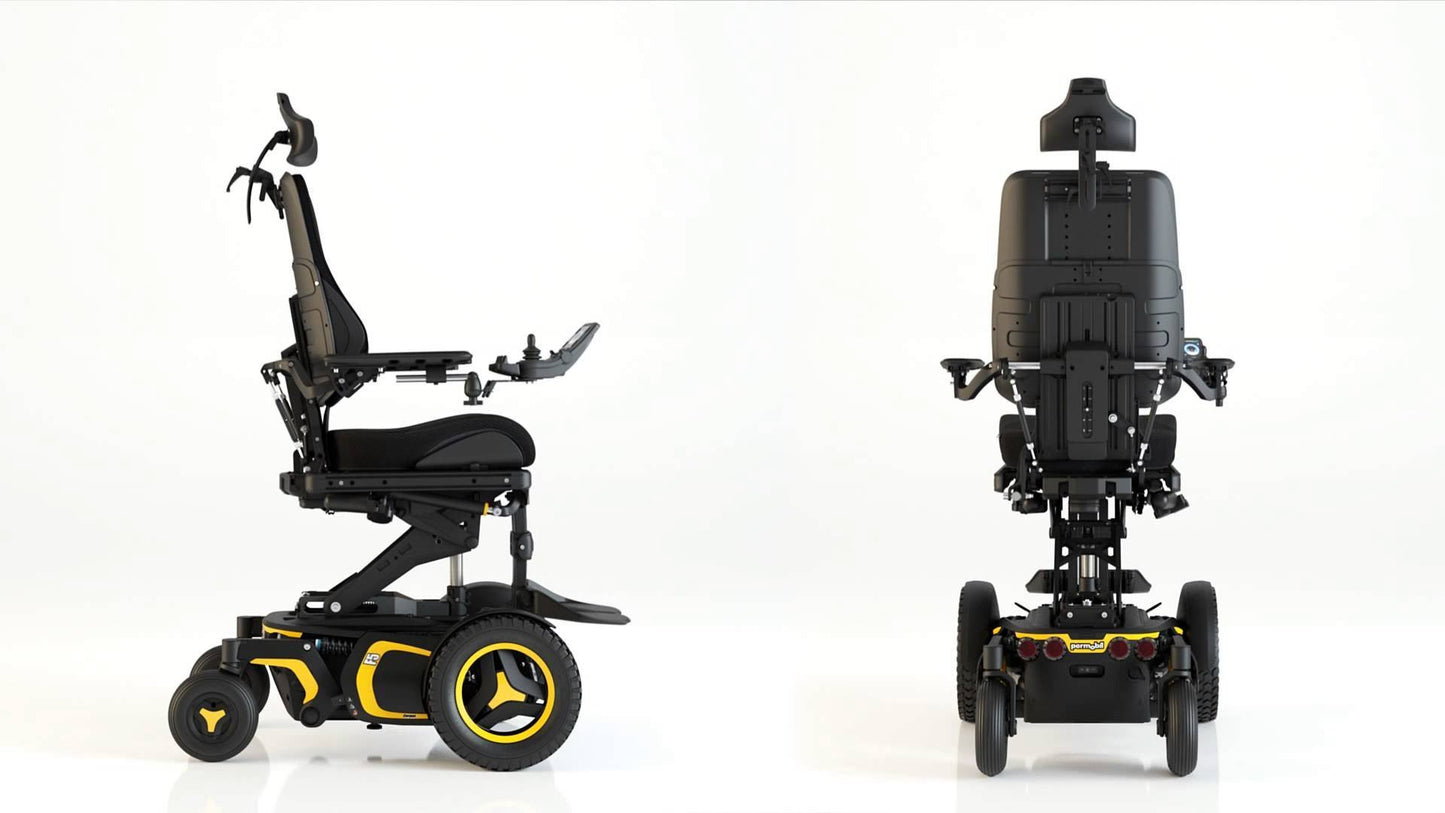

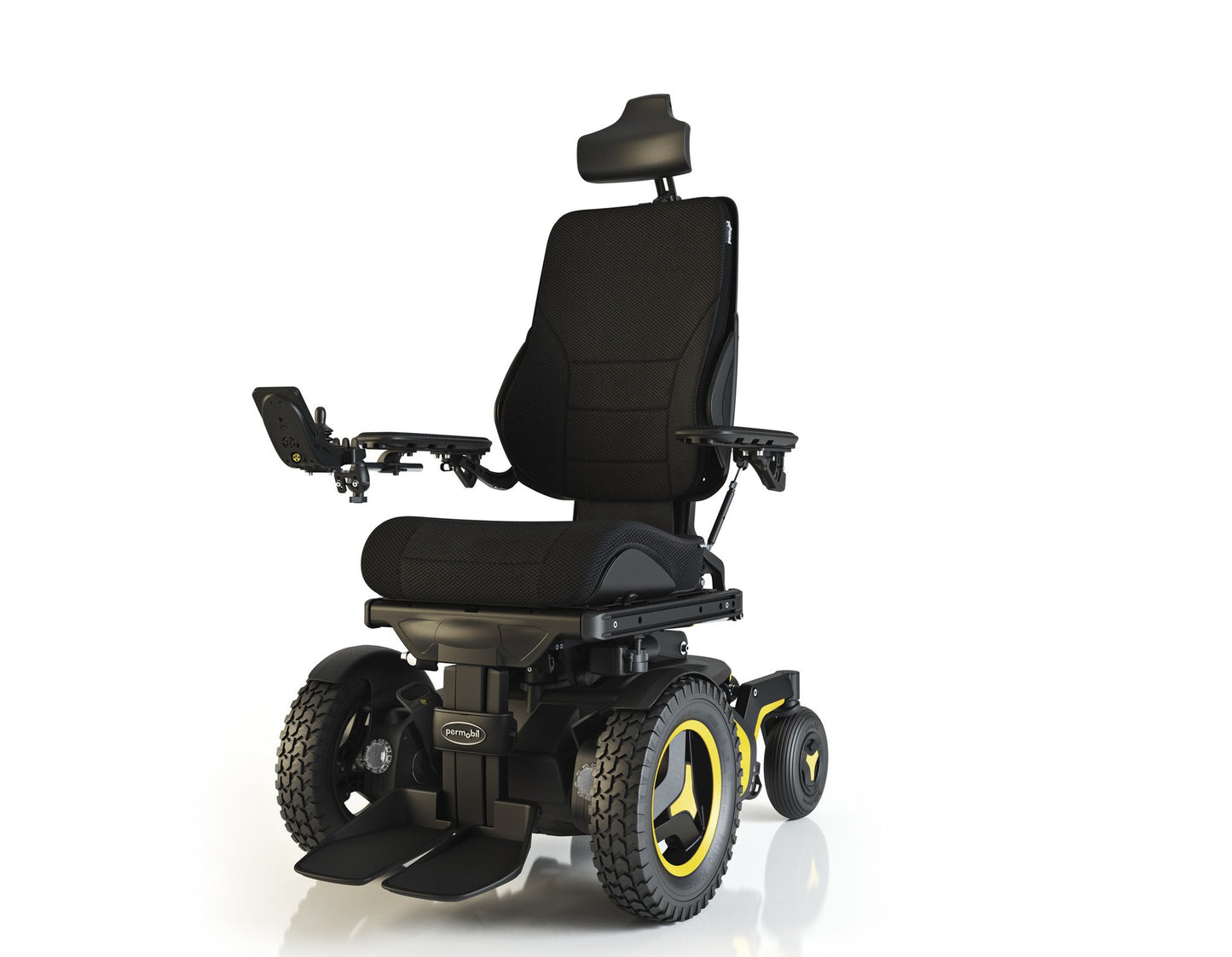

The F5 Corpus features an array of advancements to help increase the stability of the chair for a smooth, comfortable ride, including: a smaller footprint with an improved center of gravity, a more rigid chassis, fully independent oil-dampened suspension and a lower seat-to-floor height. The new three-point tilt and elevator system provides solid stability and performance. The standard 7.5 mph motor package with improved torque allows users to easily navigate obstacles at any speed. Options include: black tires with more aggressive tread patterns, chrome accents and two additional color options.

The CORPUS® SEATING SYSTEM. We retained all of the things that you have come to expect from the legendary Corpus seating system like the arc legrests, the open armrest design and the UniTrack System. Then, we took the Corpus seating system to the next level with advanced features such as: the 14” seat elevator and the A/P tilt function, which allows for optional 10°, 20° and 45° of anterior tilt, while maintaining 50° of posterior tilt. The A/P tilt helps our users with transfers, added reach, and allows them to get closer to a table or workspace.




A true fully independent suspension allows the F5 Corpus to absorb everyday terrain and obstacles with minimal translation to the end user. Our updated shocks are fully adjustable with an included 4mm tool all while the user remains in the chair. The ride quality is like nothing you’ve experienced in a power wheelchair before.

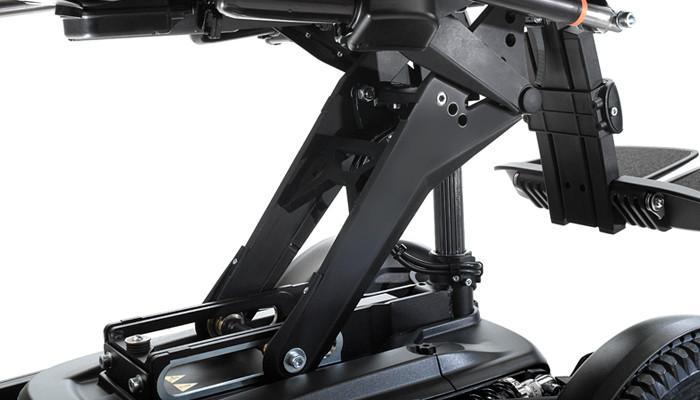

The new seat elevator utilizes 3 points of contact and shifts the seat rearward as it elevates to maintain an unimaginable level of stability even at full elevation. This allows individuals to get closer to tasks while providing almost twice as much elevation twice as fast.



The lower Seat-to-Floor height on the new F-Series means an improved accessibility to your world.


With optional 10º, 20º, and 45º anterior tilt, while maintaining 50º posterior tilt.


*Anterior tilt must be clinically recommended by a licensed professional. Additional support features such as knee blocks and chest straps may need to be prescribed.


Maximum User Weight 300lbs 136 kg
Maximum Speed Options 7.5 mph 12 km/h
Driving Range (1) 16 miles 26 km
Base Width 25.5" 648 mm
Base Length 38" (42" w/ anti-tippers) 965/1066 mm
Minimum Turning Radius 30" 762 mm
Ground Clearance 3" 75 mm
Optional Seat Elevator 14" 350 mm
Battery Type Group 24 Gel

1 This represents the theoretical driving range when testing the wheelchair according to RESNA WC-2, Section 4. This test is performed under ideal conditions and actual range will vary depending on battery and driving conditions.

Drive Electronics R-net 120A
Seat to Floor Height 17.5", 18.5", 19.5" 445, 470, 495 mm
Power Tilt Options 0° - 50° Posterior 5°, 10°, 20° & 45° Anterior
Recline Options 85º-120°  (manual), 85º-180° (power)
Legrest Elevation 85°  - 170°
Armrest Pad Lengths 10", 13", 16" & 18"
Seat Widths 17" - 23" (by 2" increments) 420 - 570 mm
Seat Depths 14" - 22" (by 1" increments) 370 - 570 mm
Backrest Heights 20", 23" - 28" (by 1" incr.)

505, 580 - 710 mm

**These specifications are dependent on the configuration of the wheelchair.
