F3
F3
Call For Pricing
This product is only available upon request. Contact us for a quote.

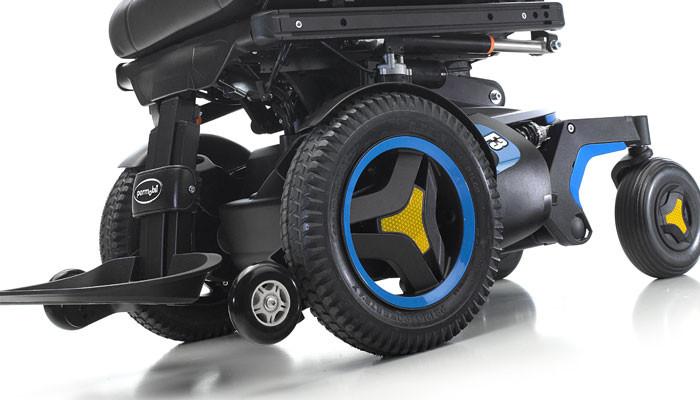

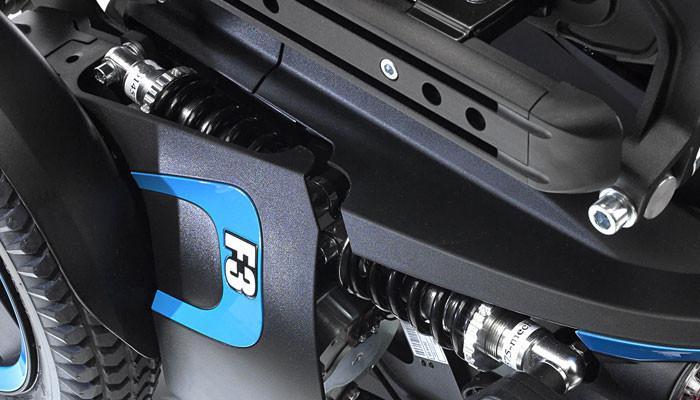

The F3 CORPUS offers the smallest footprint of this redesigned series of front-wheel drive power wheelchairs. Its size and agility let users move quickly in and out of tight spaces like busy city streets and crowded areas like malls...or even parties. The platform has a lower, repositioned center of gravity, which greatly improves stability while traversing inclines or declines. With its fully independent suspension, the F3 provides a comfortable ride and allows users to navigate the obstacles of life.

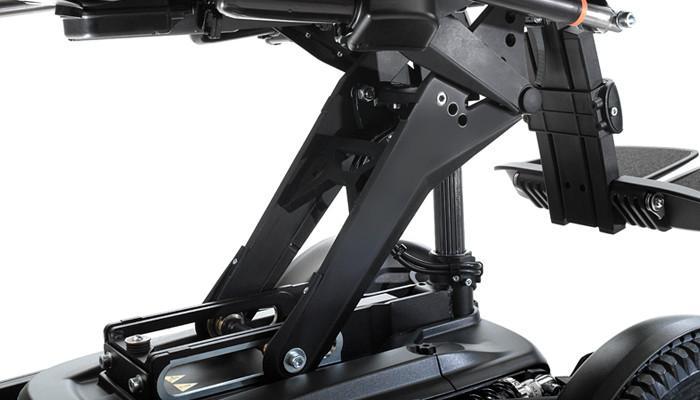

The CORPUS® SEATING SYSTEM. We retained all of the things that you have come to expect from the legendary Corpus seating system like the arc legrests, the open armrest design and the UniTrack System. Then, we took the Corpus seating system to the next level with advanced features such as: the 12” seat elevator and the A/P tilt function, which allows for optional 5º, 10°, 20° and 30° of anterior tilt, while maintaining 50° of posterior tilt. The A/P tilt helps our users with transfers, added reach, and allows them to get closer to a table or workspace.
| Maximum User Weight | 300lbs | 136 kg |
| Maximum Speed Options | 6 mph | 10 km/h |
| Driving Range (1) | 13 miles | 21 km |
| Base Width | 24" | 610 mm |
| Base Length | 36" (40" w/ anti-tippers) | 915/1016 mm |
| Minimum Turning Radius | 26.5" | 673 mm |
| Ground Clearance | 3" | 75 mm |
| Optional Seat Elevator | 12" | 300 mm |
| Battery Type | Group 24 Gel, Group 34 Gel | |
|
1 This represents the theoretical driving range when testing the wheelchair according to RESNA WC-2, Section 4. This test is performed under ideal conditions and actual range will vary depending on battery and driving conditions. |
||
| Drive Electronics | R-net 120A | |
| Seat to Floor Height | 17.5", 18.5", 19.5" | 445, 470, 495 mm |

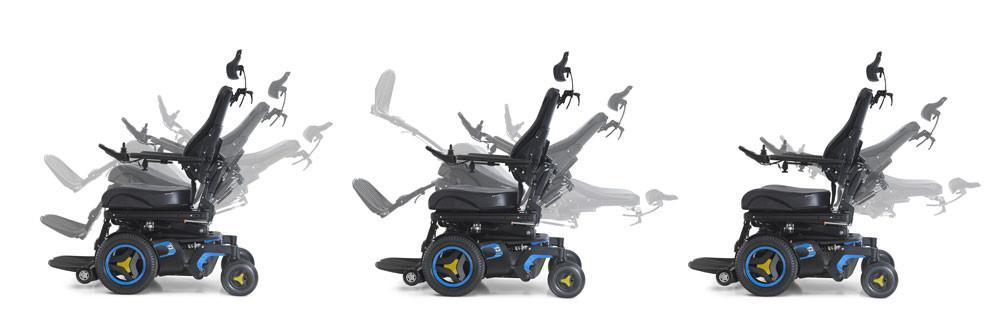

| Power Tilt Options | 0° - 50° Posterior | 5º, 10°, 20° & 30° Anterior |
| Recline Options | 85º-120° (manual), 85º-180° (power) | |
| Legrest Elevation | 85° - 170° | |
| Armrest Pad Lengths | 10", 13", 16" & 18" | |
| Seat Widths | 17" - 23" (by 2" increments) | 420 - 570 mm |
| Seat Depths | 14" - 22" (by 1" increments) | 370 - 570 mm |
| Backrest Heights | 20", 23" - 28" (by 1" incr.) | 505, 580-710 mm |
