Convaid Rodeo
Convaid Rodeo
Call for pricing
This product is only available upon request. Contact us for a quote.

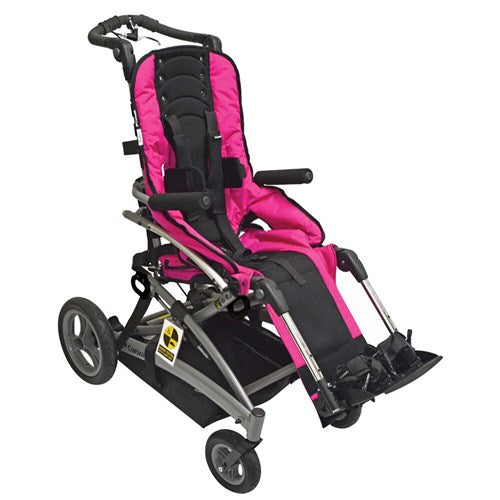

Convaid Rodeo
This unit is fully customizable with one of our specialty rehab professionals. With so many options and accessories available, let's work with you to find the perfect solution
Brochure
The Convaid Rodeo buggy offers up to 45° adjustable tilt and provides pressure relief and upper body support.
The Convaid Rodeo is a tilt--in--space buggy that provides 12.7 cm of seat depth extension through its seat depth growth feature. With 2 frame options available (with and without seating), it accommodates aftermarket and extensive seating needs.
Convaid Rodeo’s Cordura upholstery comes in a wide selection of colours and is removable and fully washable. The Convaid Rodeo offers 90 to 110° of recline, allowing variance in the seat-to-back angle. The Convaid Rodeo is easy to fold for maximal portability. Available in 4 width sizes for users that weigh up to 77 kilograms. Made in the USA.

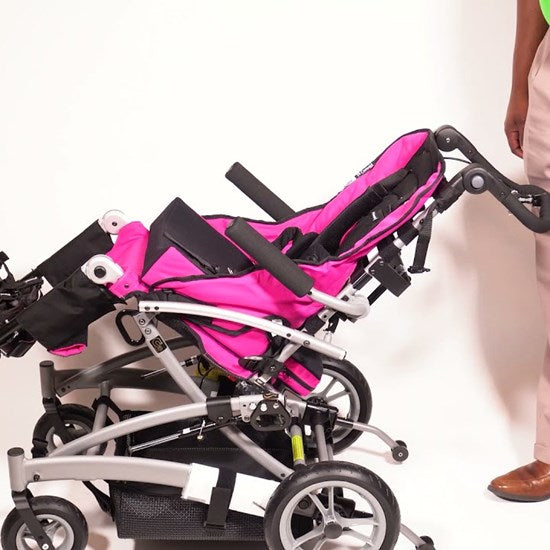

5° to 45° of adjustable tilt
Provides pressure relief and upper body support.

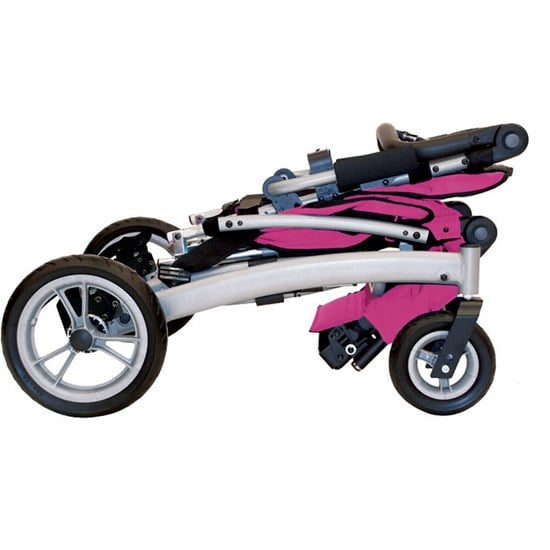

Lightweight & compact folding
The folding mechanism allows the whole chair, including seating, to fold into a tight which fits in the trunk of almost every car.

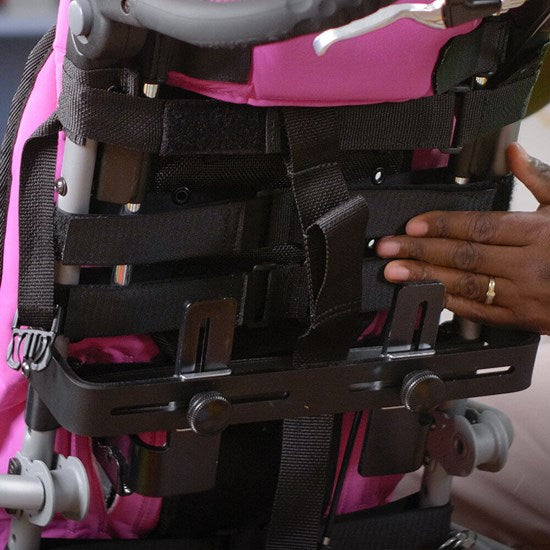

Tension adjustable back upholstery
Adjustable back straps allow for individual adjustment to the Lumber and Thoracic sections for the back.
Zippered pockets in upholstery
Allows for additional seat padding and support.
Variants
|
|
|
|
|
|
|---|---|---|---|---|
| Folded height (mm) | 445 | 430 | 460 | 460 |
| Folded length (mm) | 850 | 860 | 860 | 1015 |
| Folded width (mm) | 530 | 585 | 635 | 685 |
| Foot plate angle (°) | -40 | -40 | -40 | -40 |
| Headrest extension (mm) | 150 | 200 | 200 | 200 |
| Overall height (mm) | 1090 | 1090 | 1120 | 1140 |
| Overall length (mm) | 775 | 890 | 890 | 915 |
| Overall width (mm) | 530 | 585 | 635 | 685 |
| Push handle adjustments (mm) | 810-1230 | 880-1290 | 890-1320 | 930-1360 |
| Recline adjustment (°) | 90° or 110° | 90° or 110° | 90° or 110° | 90° or 110° |
| Seat back height (mm) | 530 | 560 | 610 | 635 |
| Seat depth (mm) | 180-305 | 230-360 | 280-410 | 330-460 |
| Seat to flipped individual angle adjustable footplate (mm) | - | 115-235 | 110-280 | 185-340 |
| Seat to flipped one piece angle adjustable footplate (mm) | 130-285 | 130-285 | 180-340 | 235-390 |
| Seat to floor (mm) | 510 | 530 | 560 | 560 |
| Seat to individual angle adjustable footplate (mm) | 180-330 | 180-330 | 240-395 | 305-460 |
| Seat to one piece angle adjustable footplate (mm) | 230-360 | 230-360 | 280-410 | 305-460 |
| Seat width (mm) | 255 | 305 | 355 | 405 |
| Shoulder strap height (mm) | 330-480 | 380-530 | 410-560 | 460-610 |
| Tilt in space tilt angle (°) | 5° - 45° | 5° - 45° | 5° - 45° | 5° - 45° |
| Total weight (kg) | 13 | 15 | 17 | 18 |
| Weight capacity (kg) | 34 | 34 | 45.5 | 77 |
| Weight seat unit (kg) | 13 | 15 | 17 | 18 |
