Capella

Capella is a tilt wheelchair. It has standard tilt with 20 degrees but you can also choose 21 degrees of recline (optional). Standard seating system consisting of: two way contoured padded fixed headrest, Orion back with 1” depth adjustabilityand Prism Ideal Cushion, Aluminum seat pan, Seat width can increase from 16” to 20” or 20” to 24” as well as seat depth can increase by 1” without the need of changing frame members. Multi adjustable axle plate and Angle adjustable caster fork stem. Capella has removable rear wheels with stainless steel or plastic coated hand-rims 60 or 70 degree dual swing-away front riggings, Flip up rear anti tippers padded lap-tray, Aluminium or composite foot plates. Capella has heel loops Adjustable seat pan (optional).

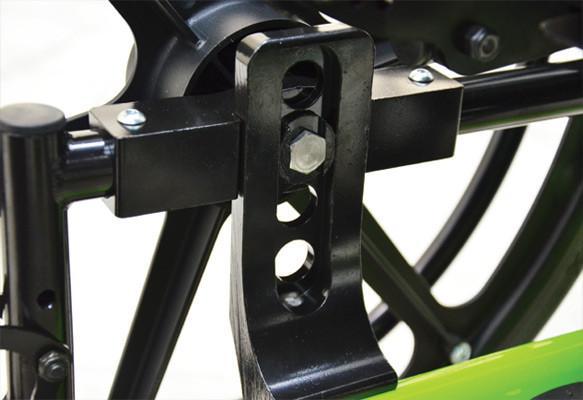

Adjustable Axle Plate Position

Capella gives the facility to Adjust Axle plate position. You can set axle plates according to the requirements. It is a very simple task and you can adjust your wheelchair at any time. For more information you can contact with our dealers.

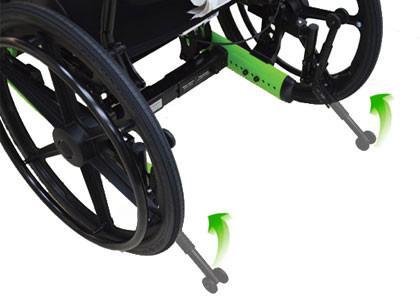

Locking Flip Up Anti Tippers

Locking flip up provide protection and it is the best feature of Capella. Capella uses anti tippers with locks. It is easily detachable. Anti tipper makes sure that Capella Wheelchair cannot go back beyond the fix angle. It protects the user of the wheelchair.

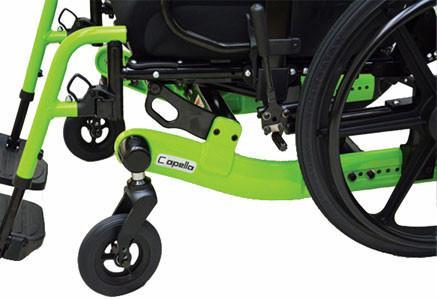

Adjustable Front Fork Angle

Adjustable front fork angle which ensures that the casters are always perpendicular to the floor. There are different type of caster height-to floor options available. Select the right height according to the requirements. Two important thing when you choose the caster and that is, height and caster Angle. When a wheelchair's front suspension is aligned, caster is adjusted to achieve the self-centering action of steering, which affects the wheelchair's straight-line stability. Improper caster settings will cause the driver to move wheel both into and out of each turn, making it difficult to maintain a straight line.

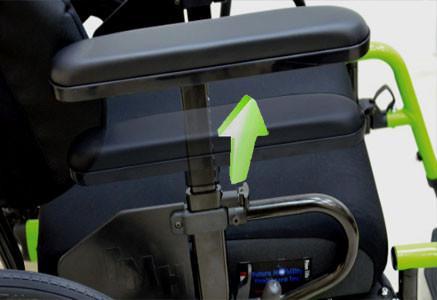

Pin Release Arm

You can set the height of the arm with this feature of Capella Wheelchair. Pin release arm allows easy height adjustment of T-arm. Capella has some standard height options. You can set your arm according to your body height.

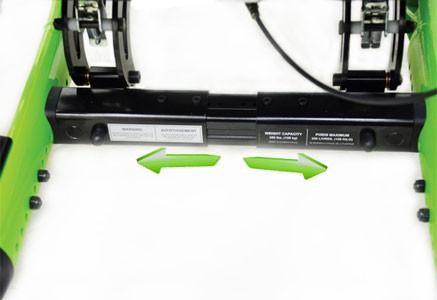

Chair Adjustable Width

If you use a Capella Wheelchair but after some time you want to give it to another person who happen to have more mass then this feature will help you adjust the width of the wheelchair. Capella wheelchair width is adjustable from 16”-20” or 20”-24”.

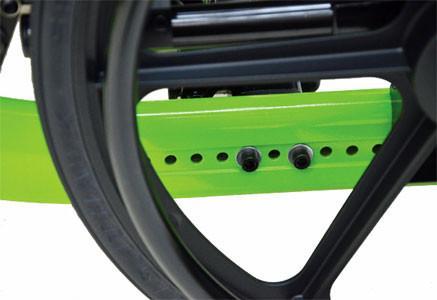

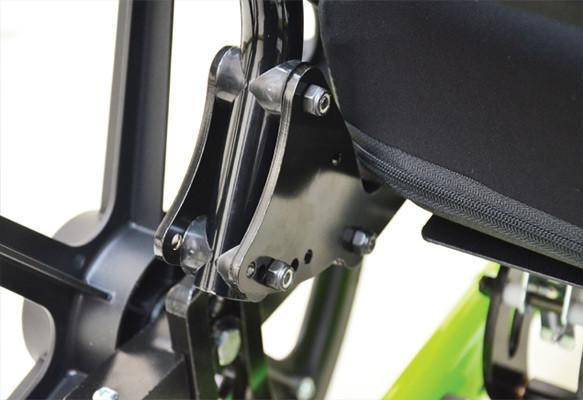

Axle Plate

Capella Wheelchair Axle plate allows many different seat to floor heights and center of gravity adjustments. You can also use Quick release axle with Capella Wheelchair. Capella Axle Plate allow for you to adjust the wheelchair seat height. You can set your Wheelchair height according to the requirements.

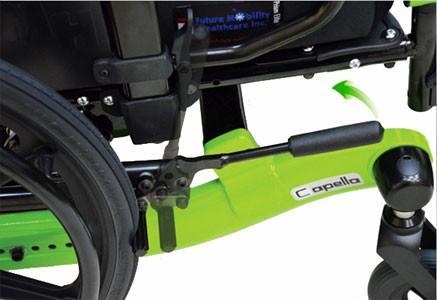

Push Pull Wheel Lock

Capella Wheelchair wheel lock with handle is available in both push or pull to lock options. Brake extension attached to handle and it stops the Wheelchair immediately. Capella wheel lock is a standard option.



Adjustable Back

Capella adjustable back compact incredible design on the fold down stroller handle. It also enables the handles to be folded down tight against the back canes so the chair can be transported in tight spaces much easier. This ensure that the caretaker always feel comfortable positioning hands, no matter what the angle of tilt is on the wheelchair.

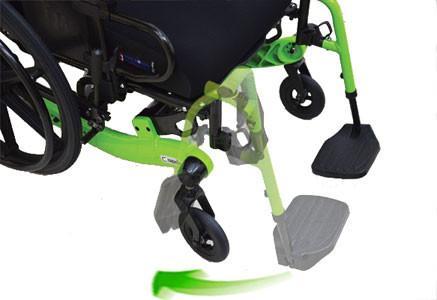

Dual Swinging Front Riggings

Capella Wheelchair uses dual swinging front riggings can swing either in or out for removal. You can simply set the front riggings or remove the front riggings. Capella Wheelchair provides front riggings adjustments.

Technical Specification
Model Number	109
Starting Retail Price	$3,100
Frame Style	Tilt-in-Space
Funding Information	WM0000559
Wheelchair Weight	40 lbs.
Frame Material	Aluminum
User Weight Capacity	350 lbs.
Shipping Dimensions	40" X 28 "X 31"
Average Shipping Weight	97 lbs.
Frame and Feature Measurements
Seat Widths	16" to  24"
Seat Depths	15" to 20"
OverallSeat Widths	Chair Width + 10.5"
Front Seat-to-Floor Height	11.75" to 19"
Rear Seat-to-Floor Height	12.75" to 18"
Back Height
Angle Adjustable Backrest Adjustment Range
Camber
Center of Gravity Adjustment
Tilt Range	20°,45°
Recline Range	21°
Options & Accessories
Frame Type	Standard
Tilt Release Options	Hand Release
	Foot Release
Caster Wheels	4",5",6",7",8" Polyurethane
Hangers	60°,70°,90° Swingaway Legrest
	60°,70°,80°,90° Dual Swingaway Legrest
	70°,80° Pin Style Legrest
	Elevating Legrest
Footplates	Composite Flip-up
	Composite Angle Adjustable
	Aluminum Flip-up
	Aluminum Angle adjustable
	One Piece Aluminum Footboard
Footplate Options	Heel Loops
	Padded Calf Strap
	Footplate Foam Pad
Axle	Fixed Bolt
	Quick Release
Axle Plate	Standard Adjustable
Rear Wheel Type	12",16",20",22",24",Mag Wheel
	20",22",24" Spoke Wheel
Rear Wheel Tire	Airless
	Pneumatic
Handrims	Chrome Steel
	Vinyle Coated
Backrest Type
Back Post Options	Fixed Push Cane
	Fold Down
	Stroller Bar
	Recline
Backrest Options
Back Upholstery	Prism Backs
Armrests	T-Style Adjustable Height Knob Release
	T-Style Adjustable Height Pin Release
	T-Style Fixed Height
	Flip Back Adjustable Height
	Flip Back Fixed Height
Arm Pads	Contour Gel 17"
	Contour Gel Wide 16"
	Desk length Vinyl 10"
	Full length Vinyl 14"
Wheel Locks	Push-to-Lock
	Pull-to-Lock
	Foot Lock
Seating	Solid Seat Pan
	Adjustable Seat Pan
	Prism Seating
Anti-Tips	Flip-up Anti Tipper
Positioning Belts	Auto-Seat Positioning Straps
	Velcro Release Positioning Strap
Lap Tray	Clear Lap Tray
	Padded Lap Tray
Frame Color Options	Wet Black
	Silver Linning
	Cobalt Blue
	Green Apple
	Burnt Orange
	Lilac Purple
	Fire Red
	Yellow Ribbon
	Silver Vein
