Amylior GS 100

GS Series Scooter Manual

• The travel-size Gs100 scooter allows you to move effortlessly in tight spaces. Take it with you anywhere, it’s easy to disassemble and reassemble. Ideal for your local trips or to bring in the car. It’s equipped with a high-tech S-Drive™ electronic controller making it a favorite for users.



• HIGHLIGHTS

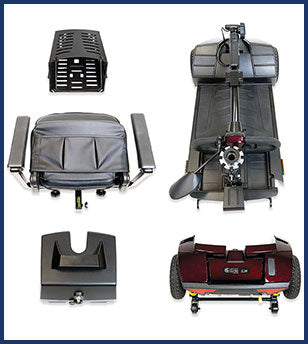

  • Quick release collapse for easy transport
    LED front light
  • Foldable removable basket

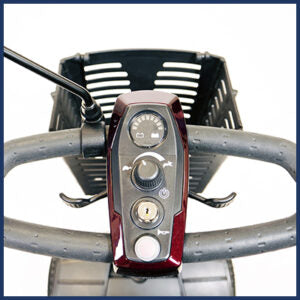

  • Control panel with charge indicator
  • Adjustable tiller
  • Tires with inner tube
  • Sealed lead-acid batteries* 22 Ah
  • Charger storage compartment
  • Rear-view mirror (1)
  • Four-wheel suspension

  Available options

  • Extra battery pack*
  • Cell phone holder
  • Safety belt
    * Aircraft friendly

• FEATURES




  S-DriveTM controls	45 A
  Traction	Rear
  Batteries	22 Ah
  Off-board charger	3 A
  Speed control	Yes
  Electromagnetic brake	Yes
  Adjustable tiller	Yes

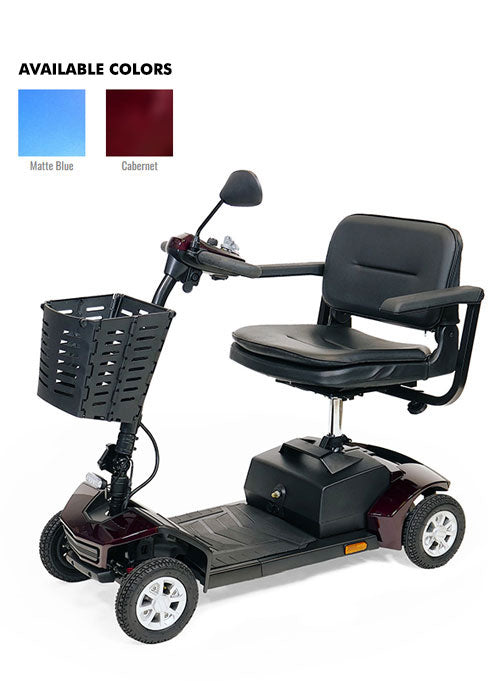

  Colours	Matte Blue or Cabernet
  Seat colour	Black



  TECHNICAL SPECIFICATIONS




  Weight capacity	300 lb (135 kg)
  Overall width	21.5″ (546 mm)
  Overall length	42.5″ (1080 mm)
  Maximum speed	4.4 mph (6.5 km/h)
  Ground clearance	1.7″ – 2.2″ (43 mm – 56 mm)
  Turning radius	39″ (990 mm)
  Tires	4 x 8″ (4 x 205 mm)
  Standard seat	17″ x 16″ (430 mm x 402 mm)



  LIMITED WARRANTY




  5 years: Main frame, seat post, steering structure and fork.
  2 years: Motor/transaxle assembly, electromagnetic brake, controller, charger, electrical cables, and other electronic components.
  1 year: Original batteries and Bluetooth sound bar.
